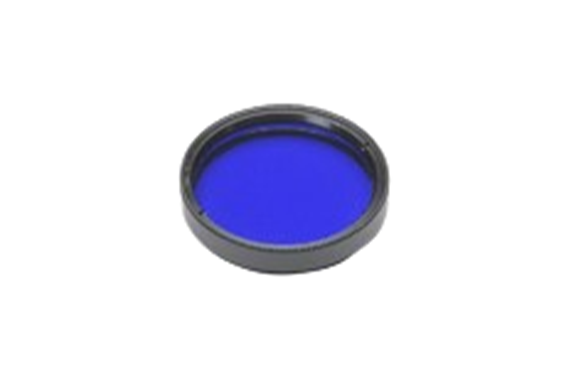

CCS V44-30 Filters
Manufacturer: CCS Inc.
Model: V44-30
Features
- Lens filter installed in front of a lens.
- Transmits the light in a band centered on 440 nm in a blue wavelength range from 350 to 520 nm.
- Compatible with a lens filter thread diameter of M30.5 x P0.5.
Specifications
| Dimensions | Outer diameter 32 mm, Inner diameter 27 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M30.5 x P0.5 |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 10 g max. |
Dimensions (mm)
