Chino, Japan

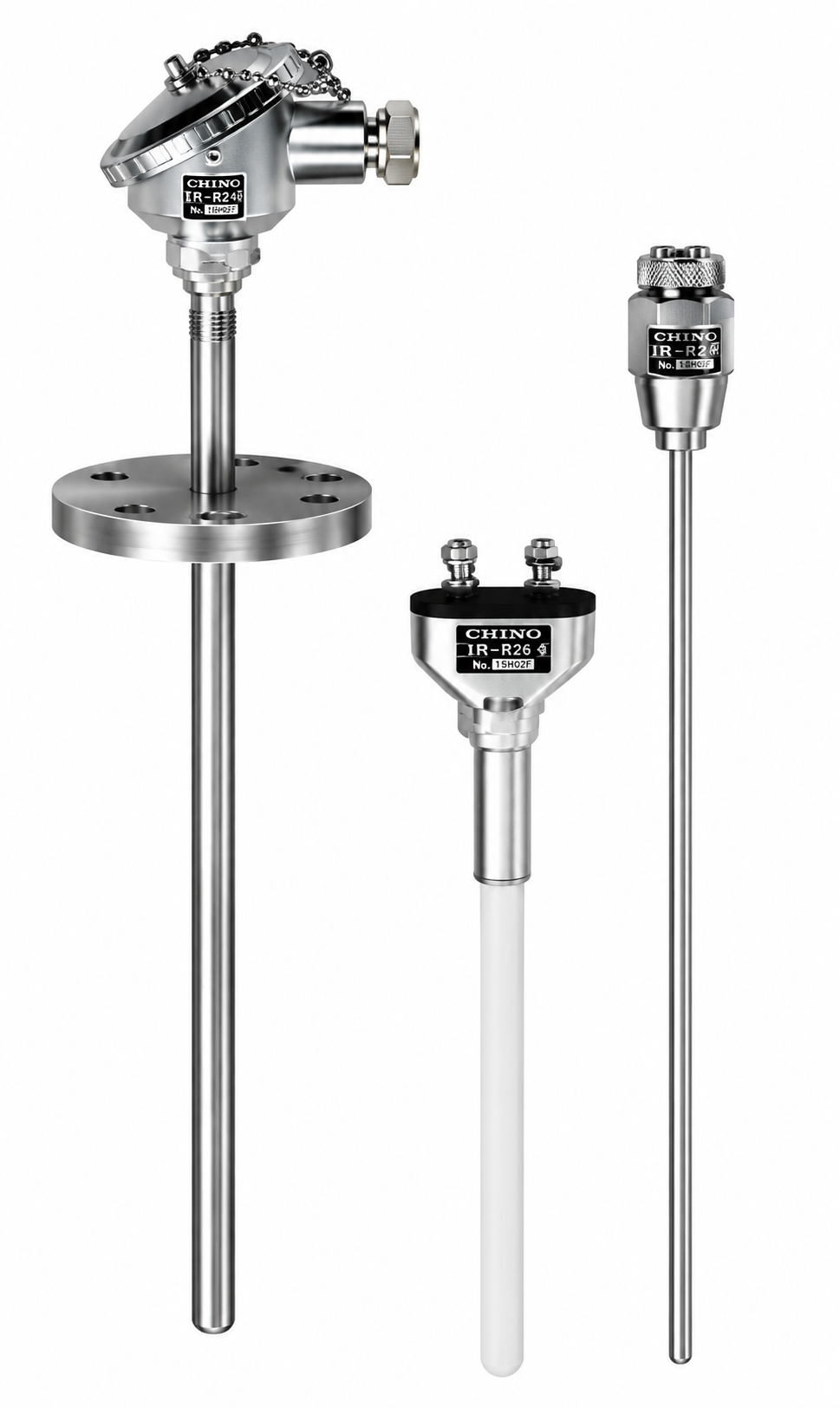

Chino R Series ndustrial Temperature Sensor
Made in Japan
Manufacturer: Chino Corporation
Model: R Series: R61, R63, R81, R83, RW1
Models
| Type | Code | Resistance | Size(φmm) | Applicable protective tube diameter(φmm) | Temp. range(℃) |
|---|---|---|---|---|---|
| Ceramic thin type | R61 | JPt100Ω | φ1.5 x 15 | φ3.2 or larger | -200 to 650 |
| R63 | Pt100Ω | ||||
| Ceramic standard type | R81 | JPt100Ω | φ4.0 x 35 | φ6.0 or larger | -200 to 650 |
| R83 | Pt100Ω | ||||
| Ceramic dual element type | RW1 | JPt100Ω | φ1.5 x 15 | φ9.0 or larger | -200 to 650 |
Features
Thse sensors are for temperature measurements at industrial on sites, and are available in two types, thermocouples and resistance thermometers.

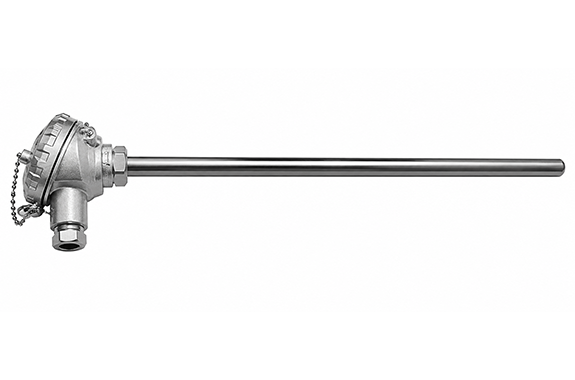

Each sensor consists of a terminal hea, a protective tube, mounting fixture, an element, and an insulation tube.
Specifications
| Element | Pt100 |
|---|---|
| Tolerance | JIS class A, B |
| Measuring Current | 2mA、1mA |
| Measuring Temperature | －200 to 650℃（JPt100：500℃） |
