Chiyoda Seiki, Japan

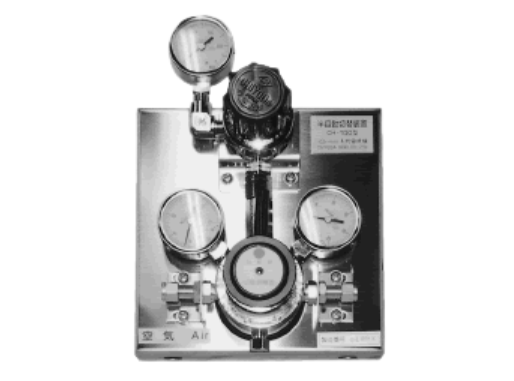

Chiyoda Seiki CH-100B Panel Set
Made in Japan
Manufacturer: Chiyoda Seiki
Model: CH-100B
Feature
● The semi-automatic switching device connects two regulators in parallel and creates a difference (usually 0.2Mpa) in the secondary pressure setting of each. , when the remaining amount of gas on the consuming side is low, it automatically starts to flow gas from the standby side while keeping the flow rate constant.
● By replacing the empty cylinder with a full cylinder and rotating the switching lever 180°, the set pressure on the side where the flow starts will become higher than the side on which the gas has been consumed, enabling continuous switching and gas supply again. increase. (Cylinders can be replaced while supplying gas.)
● Attaching a pressure gauge with a contact point to the primary side and connecting it to an alarm panel informs the user that gas has run out, making it convenient for cylinder replacement.
● The switching operation is performed by balancing the spring force and gas pressure inside the regulator, and does not require a power supply, so no installation work other than the device is required.
Specification
