Chiyoda Tsusho

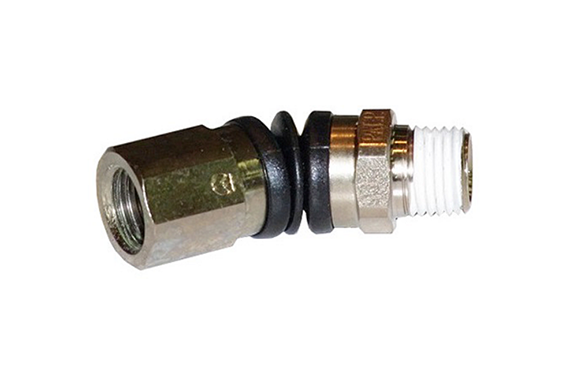

Chiyoda Tsusho 3FAG2F-2M/3FA3F-3M Free Angle Connector FM Type
Manufacturer: Chiyoda Tsusho
Model: 3FAG2F-2M/3FA3F-3M
Feature
- The direction can be changed freely, ideal for working with tools, etc.
- Can rotate freely, avoid twisting and breaking the tube
- The screw part is sealed (R screw), so it can be piped like the original
Specifications
| Model | A | B | Spanner Flats | L | Thread | Effective Section Area (mm²) | Weight (g) | ||
|---|---|---|---|---|---|---|---|---|---|
| H1 | H2 | T1 | T2 | ||||||
| 3FAG2F-2M | 55.7 | 15.5 | 19.0 | 19.0 | 49.7 | G1/4 | R1/4 | 25 | 61 |
| 3FAF3F-3M | 59.3 | 19.5 | 21.0 | 19.0 | 52.9 | Rc3/8 | R3/8 | 25 | 76 |
General drawing
