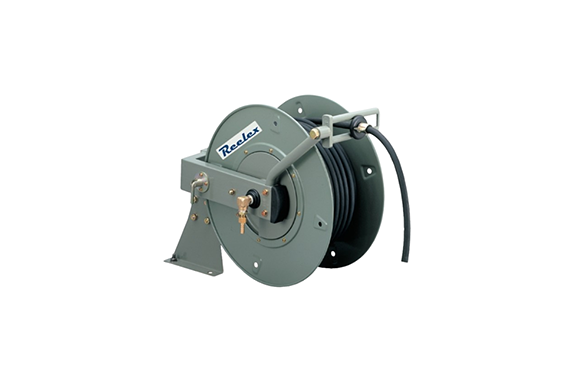

Chuhatsu AR-920 Series Air And Water Hose Reels
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
– Swivel head allows for smooth winding
● Designed to be installed on both walls and floors, allowing for a wide range of uses
●The lock pin prevents the hose from getting caught in the event of an impact.
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Connection fittings – Primary side | Installation location | Mass (approx. kg) | Replacement hose assembly Part Number | ||
|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (Φ mm) | Length (m) | Material | |||||||
| AR-920 | Air / Water | 9.5 | 20 | Rubber | 1.47 | Bamboo shoots Φ11.0 | Floor/wall | 36.0 | 3H2-008-3 |
| AR-930 | Air / Water | 9.5 | 30 | Rubber | 1.47 | Bamboo shoots Φ11.0 | Floor/wall | 38.0 | 3H2-006-3 |
| AR-1315 (Production has been discontinued) | Air / Water | 12.7 | 15 | Rubber | 0.98 | Bamboo shoots Φ14.0 | Floor/wall | 40.0 | 3H2-009-3 |
| AR-1325 | Air / Water | 12.7 | 25 | Rubber | 0.98 | Bamboo shoots Φ14.0 | Floor/wall | 41.0 | 3H2-011-3 |
