Chuhatsu Sales Co.
Chuhatsu Barrier Reel Long Cone Type

Manufacturer: Chuhatsu Sales Co., Ltd.
Features
It can be used in a wide range of applications, such as construction sites, inspection sites, restricting the entry of people and objects, and directing their flow, depending on how it is used.
●Long stroke with a seat length of up to 6m
●Convenient automatic winding for seat storage

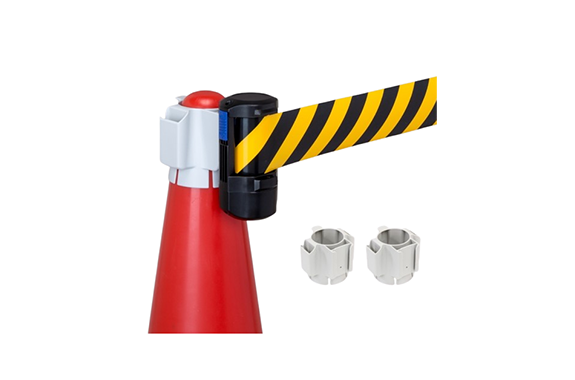

●The included cone attachment makes it easy to attach and detach the cone and attachment.
● Comes with a safety mechanism that rewinds slowly
●With seat lock mechanism
● Tough structure that is resistant to impacts
Specifications
| Model | Set contents | Main unit specifications | Sheet View | Seat specifications | Mass | Replacement sheet (with magnet) Part Number |
|---|---|---|---|---|---|---|
| BRS-606AS | Barrier reel long body (without magnet) + BRS-AT5 (2 pieces) | Width 70 mm × Depth 63 mm × Height 126 mm Material: ABS resin | Yellow/Black | Thickness 0.2 mm × Width 60 mm × Length 6 m Material: Polyethylene | Main unit: approx. 315 g Attachment: approx. 60 g | 3M3-A0032 |
| BRS-606BS | Yellow/Black + Danger Keep Out | 3M3-A0033 | ||||
| BRS-606CS | Yellow/Black + Do not enter during work | 3M3-A0034 | ||||
| BRS-606DS | Yellow/Black + Authorized Personnel Only | 3M3-A0035 |
