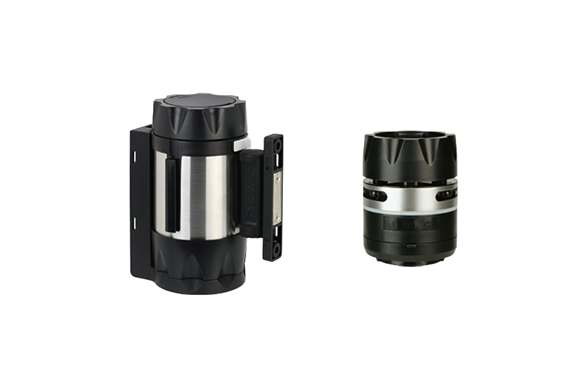

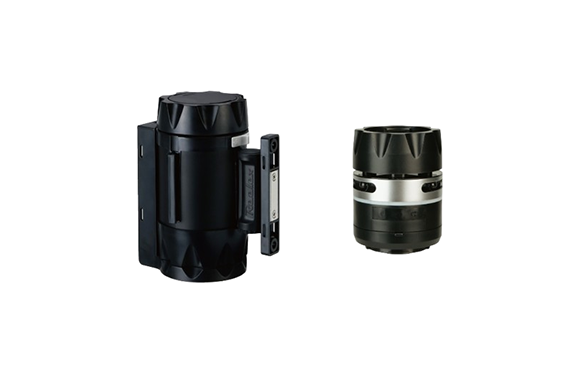

Chuhatsu Barrier Reel MAX X Sound Barrier Set

Manufacturer: Chuhatsu Sales Co., Ltd.

Features

●Barrier Reel MAX/Barrier Reel MAX PRO and Sound Barrier are bundled together for a better deal than purchasing each item separately.

　*Maximum 4,000 yen *Standard price (excluding tax) for Barrier Reel MAX PRO

●The sheet length is up to 10m*, and it also complies with regulations regarding wide entrances.

*Maximum barrier reel is 6m

Uses a durable nylon belt* that is hard to break　

※Barrier Reel MAX

●Customized audio can be created to suit the scene.

Model	Main unit specifications	Belt/Seat Indicator	Belt/Seat specifications	Accessories	Mass
BRS-510ASBSET	size: Width 87 × Depth 97 × Height 143 (mm) *Excluding accessories Material: AES, stainless steel Outdoor rainproof type	Yellow/Black	[Seat] Thickness: 0.2 mm Width: 50 mm × Length: 10 m Material: Polyethylene	• Voice guide with motion sensor “Sound Barrier SB-100” *Specifications are listed separately• Wall-mounted bracket (with 2 magnets) • Wall-mounted holder (with 1 magnet)• 2 pan head screws for fixing the main body (M4 × 16)	Approximately 660 g (batteries not included)
BRS-510BSBSET		Yellow/Black + Danger Keep Out
BRS-510CSBSET		Yellow/Black + Do not enter during work
BRS-510DSBSET		Yellow/Black + Authorized Personnel Only
BRBP-506BSBSET	Danger, no trespassing	[Belt] Thickness: 0.5 mm Width: 50 mm × Length: 6 m Material: Nylon
BRBP-506DSBSET	No entry except for authorized personnel

Model	Specification	Mass
SB-100	Size: Width 75 × Height 100 (mm) Material: ASA resin Power supply: 4 AA alkaline batteries or nickel-metal hydride batteries or AC (USB Type-C connection: only possible when used alone) Batteries sold separately This unit does not have a charging function. Volume: 0 to 80 dB (1 m ahead) Battery life (reference): approx. 50 days at medium volume, 10 s, 30 times/day (in main unit mode) Sensor function: detection angle ~360° horizontally; detection distance ~3 m Bulb type: LED × 4 LED color selectable (red / blue / green / yellow / white) with the dedicated app Place of use: indoors Usage environment: −10°C to +40°C; humidity RH 95% or less (no condensation or freezing) *The motion sensor may malfunction if the temperature exceeds 30°C. SD card: 2 × 32GB microSD cards (for audio/system) Bluetooth standard Ver.4.2	170 g (batteries not included)
