Chuhatsu Sales Co.

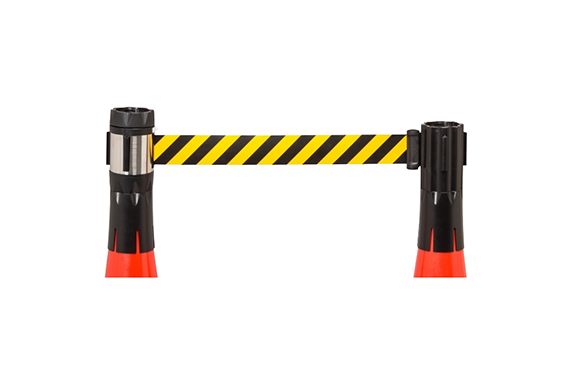

Chuhatsu Cone Type
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
High-performance model with a belt length of 6m and a seat length of 10m
●Can be attached to a triangular cone using the included cone attachment
●Uses a nylon belt that combines strength and a high-quality feel.
-Tightening handle reduces belt/seat slack
●A wide variety of installation methods available for a wide range of situations
Specifications
| Model | Main unit specifications | Belt/Seat Indicator | Belt/seat specifications | Mass | Replacement belts/seats Part Number |
|---|---|---|---|---|---|
| BRB-506AS | • Material: AES, stainless steel • Outdoor rainproof type | red | Belt: Thickness 0.5 mm × Width 50 mm × Length 6 m Material: Nylon | Approximately 550g | 3M3-A0081 |
| BRB-506BS | blue | 3M3-A0082 | |||
| BRB-506CS | black | 3M3-A0083 | |||
| BRB-506DS | yellow | 3M3-A0084 | |||
| BRS-510AS | Yellow/Black | Sheet: Thickness 0.2 mm × Width 50 mm × Length 10 m Material: Polyethylene | 3M3-A0085 | ||
| BRS-510BS | Yellow/Black + Danger Keep Out | 3M3-A0086 | |||
| BRS-510CS | Yellow/Black + Do not enter during work | 3M3-A0087 | |||
| BRS-510DS | Yellow/Black + Authorized Personnel Only | 3M3-A0088 |
