Chuhatsu Sales Co.

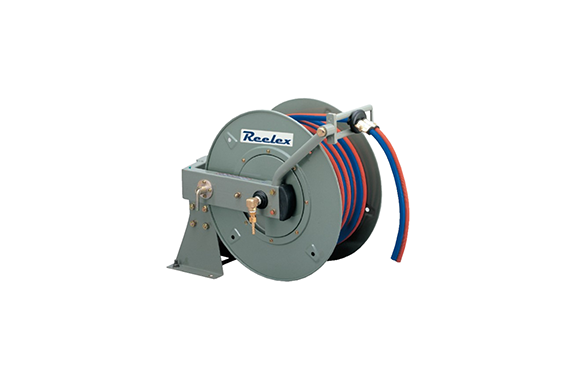

Chuhatsu Gas Welding Reel For Oxygen And LPG
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Uses a smooth winding spring with few malfunctions
●Safe design using O-rings in two places
The welded twin hose is lightweight and easy to handle.
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Connection fittings (primary side) | Installation location | Mass (kg) | Dimensions | Replacement hose assembly Part Number | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (Φ mm) | Length (m) | Material | ||||||||
| LPGR-5510B (Production has been discontinued) | Oxygen/LPG | Oxygen 5.0 LPG: 5.0 | 10 | Rubber | 0.98 | Bamboo shoots Φ 6.5 | Floor / wall | 21.0 | (1) | 3H3-108-3 |
| LPGR-5520B (Production has been discontinued) | Oxygen/LPG | 20 | 10 | Rubber | 0.98 | Bamboo shoots Φ 6.5 | Floor / wall | 24.0 | (2) | 3H3-110-3 |
| LPGR-8910 (Production has been discontinued) | Oxygen/LPG | Oxygen 8.0 LPG: 9.5 | 20 | Rubber | 0.7 | Bamboo shoots Φ 8.5 | Floor / wall | 32.0 | (2) | 3H3-114-3 |
| LPGR-8920 | Oxygen/LPG | 20 | 20 | Rubber | 0.7 | Bamboo shoots Φ 11.0 | Floor / wall | 40.0 | (2) | 3H3-113-3 |
