Chuhatsu Sales Co.

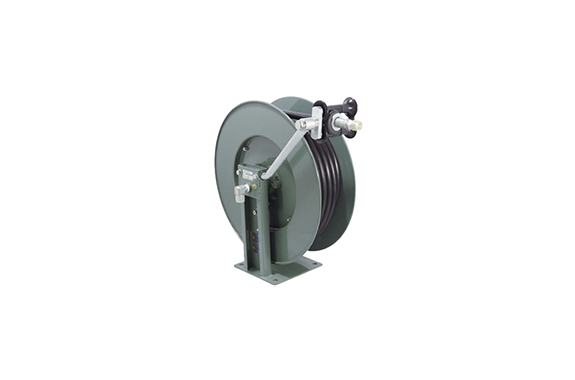

Chuhatsu High-Pressure Hose Reel Indoor Use
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
The reel body is made of shock-resistant metal
●Uses a swivel joint designed specifically for high durability and high pressure
Two variations: floor mounting and ceiling mounting
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Connection fittings (primary side) | Installation location | Mass (kg) | Option (auxiliary hose 1.5m) | Part Number | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (Φ mm) | Length (m) | Material | ||||||||
| ORP-610F210 | Grease, General hydraulic oil | 6.3 | 10 | Rubber | 21.0 | Rc 1/4 | Floor | 27.0 | 3H4-A0017 (Reel side: R1/4, Pipe side: G1/4 male 30° seat) | |
| ORP-610F210C | Grease, General hydraulic oil | 6.3 | 10 | Rubber | 21.0 | Rc 1/4 | Ceiling | 27.0 | 3H4-A0017 (Reel side: R1/4, Pipe side: G1/4 male 30° seat) | |
| ORP-615F210 | Grease, General hydraulic oil | 6.3 | 15 | Rubber | 21.0 | Rc 1/4 | Floor | 30.0 | 3H4-A0018 (Reel side: R3/8, Pipe side: G3/8 male 30° seat) | |
| ORP-910F210 | Grease, General hydraulic oil | 9.5 | 10 | Rubber | 21.0 | Rc 3/8 | Floor | 29.0 | 3H4-A0018 (Reel side: R3/8, Pipe side: G3/8 male 30° seat) | |
| ORP-910F210C | Grease, General hydraulic oil | 9.5 | 10 | Rubber | 21.0 | Rc 3/8 | Ceiling | 29.0 | 3H4-A0018 (Reel side: R3/8, Pipe side: G3/8 male 30° seat) | |
| ORP-915F210 | Grease, General hydraulic oil | 9.5 | 15 | Rubber | 21.0 | Rc 3/8 | Floor | 32.0 | 3H4-A0018 (Reel side: R3/8, Pipe side: G3/8 male 30° seat) | |
