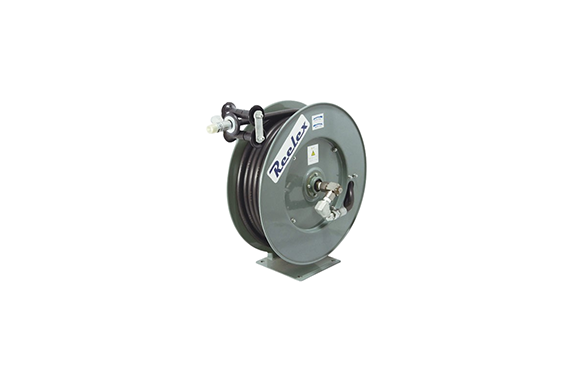

Chuhatsu High-Pressure Hose Reel Outdoor Specifications
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
The reel body is made of shock-resistant metal
●Uses a swivel joint designed specifically for high durability and high pressure
Two variations: floor mounting and ceiling mounting
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Connection fittings (primary side) | Installation location | Mass (kg) | Option (auxiliary hose 1.5m) | Part Number | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (Φ mm) | Length (m) | Material | ||||||||
| ORP-910FY140 | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 9.5 | 10 | Rubber | 14.0 | G 3/8 (female 30° seat) | Floor | 29.0 | 3H4-A0019 (Reel side/piping side: G3/8 male 30° seat) | |
| ORP-920FY140 | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 9.5 | 20 | Rubber | 14.0 | G 3/8 (female 30° seat) | Floor | 33.0 | 3H4-A0020 (Reel side/piping side: G3/8 male 30° seat) | |
| ORP-912FY140C | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 9.5 | 12 | Rubber | 14.0 | G 1/2 (female 30° seat) | Ceiling | 31.0 | 3H4-A0020 (Reel side/piping side: G3/8 male 30° seat) | |
| ORP-1210FY140 | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 12.7 | 10 | Rubber | 14.0 | G 1/2 (female 30° seat) | Floor | 31.0 | 3H4-A0020 (Reel side/piping side: G3/8 male 30° seat) | |
| ORP-1220FY140 | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 12.7 | 20 | Rubber | 14.0 | G 1/2 (female 30° seat) | Ceiling | 34.0 | 3H4-A0020 (Reel side/piping side: G1/2 male 30° seat) | |
| ORP-1212FY140C | Grease, general hydraulic oil, hot water (MAX 80°C), high-pressure water | 12.7 | 12 | Rubber | 14.0 | G 1/2 (female 30° seat) | Ceiling | 32.0 | 3H4-A0020 (Reel side/piping side: G1/2 male 30° seat) | |
