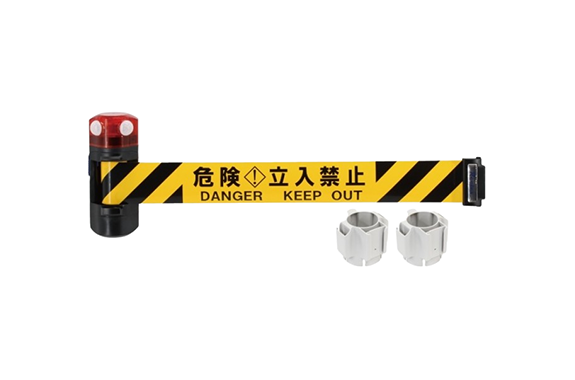

Chuhatsu LED Barrier Reel Long Cone Type
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
The barrier reel long includes an LED light, so it stands out even in dark areas. Additionally, the bright illumination improves visibility in low-light environments. A built-in motion sensor also turns on the light when someone approaches, which increases safety.
● The seat extends up to 6 meters, giving you a long stroke for wider coverage.
● Convenient automatic winding lets you store the seat quickly and neatly.
● The included cone attachment makes attaching and removing the cone simple.
● A slow-winding safety system and a seat-lock mechanism provide safer, more controlled handling.
Specifications
| Model | LED light specifications | Main unit specifications | Sheet View | Seat specifications | Mass |
|---|---|---|---|---|---|
| BRS-606ASLED | Power supply: Battery operated (three AA alkaline batteries or three AAA nickel-metal hydride batteries) *Not included with the product. • Lighting mode: Day ⇔ OFF ⇔ Night • Lighting pattern: Rotating (after the motion sensor reacts, the light rotates clockwise for about 8 s); Continuous (front LED flashes for 0.5 s / turns off for 4.5 s, repeating) • Battery life (reference value): Rotating… ~5 times/day for about 360 days; Continuous… ~5 days • Sensor function: Detection angle ≈ 180° horizontally; Detection distance: max. 6 m | • Width 70 mm × Depth 63 mm × Height 174 mm (when LED light is installed) • Material: ABS resin • Comes with two dedicated cone attachments • Outdoor rainproof type *Magnet not included. | Yellow/Black | Thickness 0.2 mm × Width 60 mm × Length 6 m Material: Polyethylene | 405 g (excluding batteries) |
| BRS-606BSLED | Yellow/Black + Danger Keep Out | – | 405 g (excluding batteries) | ||
| BRS-606RSLED | Red + Danger No Entry | – | 405 g (excluding batteries) | ||
| BRS-LED1 | • Sensor function: Detection angle ≈ 180° horizontally; Detection distance: max. 6 m • Place of use: Indoors/outdoors (rainproof standard IP44) • Usage environment: −10°C to +50°C (no condensation or freezing); Humidity: RH 95% or less • Material: Polycarbonate, AES resin • Body size: W70 × D55 × H45 mm (excluding attachment) • Accessories: Attachment ×1, mounting screws ×2 | – | – | – | 77 g (battery not included) |
| BRS-LED1C | • Width 70 mm × Depth 63 mm × Height 174 mm (with LED light attached) • Material: ABS resin • Magnet included (neodymium magnet) • Outdoor rainproof type | – | – | – | 190 g (excluding batteries) |
