Chuhatsu Sales Co.

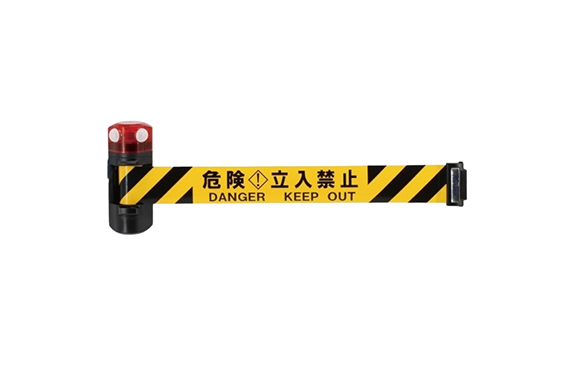

Chuhatsu LED Barrier Reel Long Magnet Type
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
The barrier reel long includes an LED light, so it stands out even in dark areas. Additionally, the LED improves visibility in places with low lighting. A motion sensor also turns the light on when someone approaches, which increases safety.
The seat extends up to 6 meters, giving you a long stroke for wider coverage.
It also uses automatic winding, so you can store the seat quickly and easily.
A powerful neodymium magnet allows you to attach it to iron surfaces without effort.
The slow-winding safety system and the seat lock mechanism provide safer handling.
Specifications
| Model | LED light specifications | Main unit specifications | Sheet View | Seat specifications | Mass |
|---|---|---|---|---|---|
| BRS-606ALED | Power supply: Battery operated (three AA alkaline batteries or three AAA nickel-metal hydride batteries) *Not included with the product* • Lighting mode: Day ⊕ OFF ⊕ Night • Lighting pattern: Rotating (after the motion sensor reacts, the light rotates clockwise for about 8 seconds) Continuous (front LED flashes for 0.5 seconds / turns off for 4.5 seconds, repeating) • Battery life (reference value): Rotating… 5 times per day for about 360 days Continuous… approx. 5 days • Sensor function: Detection angle: approx. 180° horizontally Detection distance: Max. 6m *Installation height 1m • Place of use: Indoors/outdoors (rainproof standard IP44) • Usage environment: Temperature: -10°C to +50°C (no condensation or freezing) Humidity: RH 95% or less • Material: Polycarbonate, AES resin • Body size: W70mm × D55mm × H45mm (excluding attachment) Weight: 77g (excluding batteries) • Accessories: Attachment ×1, mounting screws ×2 | • Width 70mm × Depth 63mm × Height 174mm (with LED light attached) • Material: ABS resin • Magnet included (neodymium magnet) • Outdoor rainproof type | Yellow/Black | Thickness 0.2mm × Width 60mm × Length 6m Material: Polyethylene | 430g (battery not included) |
| BRS-606BLED | Yellow/Black + Danger Keep Out | Thickness 0.2mm × Width 60mm × Length 6m Material: Polyethylene | 430g (battery not included) | ||
| BRS-606RLED | Red + Danger No Entry | – | 430g (battery not included) | ||
| BRS-LED1 | • Sensor function: Detection angle: approx. 180° horizontally Detection distance: Max. 6m *Installation height 1m • Place of use: Indoors/outdoors (rainproof standard IP44) • Usage environment: Temperature: -10°C to +50°C • Material: Polycarbonate, AES resin • Body size: W70mm × D55mm × H45mm • Accessories: Attachment ×1, mounting screws ×2 | – | – | – | 77g (battery not included) |
| BRS-LED1C | • Width 70mm × Depth 63mm × Height 174mm (with LED light attached) • Material: ABS resin • Magnet included (neodymium magnet) • Outdoor rainproof type | – | – | – | 190g (excluding batteries) |
