Chuhatsu Sales Co.
Chuhatsu LV-RC300 Rear Camera
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Rear View Camera With a Wide Viewing Angle
The rear view camera offers a wide 143° left–right view and 110° up–down view, allowing you to check your surroundings safely.
Rear View Camera Image Quality
The ultra-high-sensitivity CMOS sensor, with about 390,000 pixels, provides vivid, clear images with excellent visibility.
The F2.3 lens also delivers bright images even in dark areas, such as nighttime environments.
Rear View Camera Parking Support
You can turn on guideline display to assist with parking. This makes positioning the vehicle easier and safer.
Rear View Camera Easy Installation

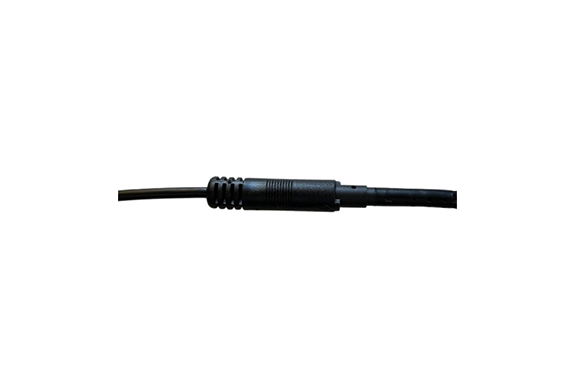

The ultra-thin connector makes installation simple, especially when routing wiring through the vehicle.

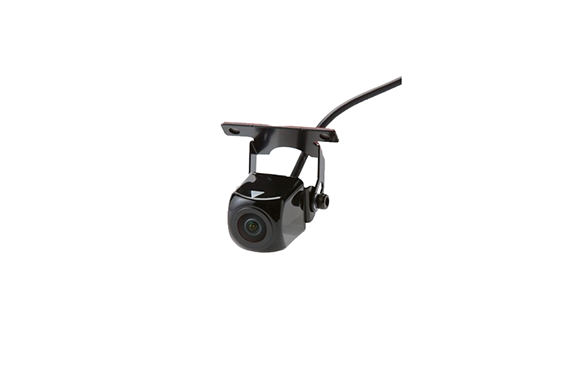

Rear View Camera Design and Durability
A piano-black coating is used to provide a combination of durability and a premium appearance.
Specifications
| Power supply voltage | DV12V (DC5.5V to DC16V) |
|---|---|
| Angle of view | Horizontal: 143° Vertical: 110° |
| Power consumption | Approximately 50mA |
| Image sensor | Color CMOS sensor 1/4 inch |
| Effective pixels | 712 (horizontal) × 552 (vertical) approx. 390,000 pixels |
| Illumination Range | 0.5lux～100,000lux |
| Resolution (horizontal) | 380 bottles |
| Waterproof | IP68 / IPX9K |
| Body size | 20(W) × 20(H) × 22(D) (excluding rear bracket) |
| Weight | Camera (including 4m cord) approx. 95g, Power and video cord approx. 155g |
| Cord length | Camera to connector 4.0m / Connector to video terminal 5.5m / Connector to power connection 3.0m |
| Lens section | F-number 2.3, focal length 1.3mm |
| Operating Temperature Range | -30 to +70°C |
| Storage temperature | -40 to +85°C |

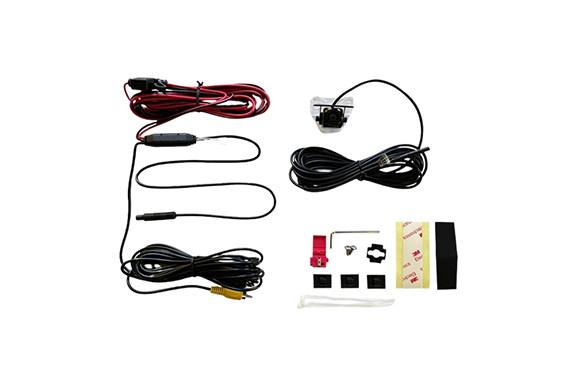

| Accessories | • Camera unit • Power/video cord • Hex wrench • Bracket screws (x2) • Clamper (x3) • Tie wraps (x3) • Crimp connector • Plate • Waterproof pad • Double-sided tape for waterproof pad |
| Country of origin | Made in Taiwan |
