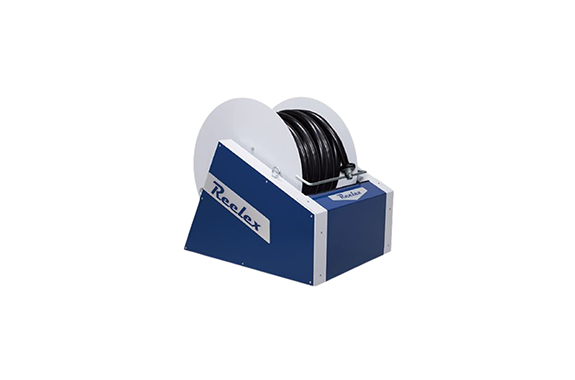

Chuhatsu New Electric Hose Reel
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Easy operation makes the previously troublesome task of inserting and removing hoses very smooth. Careful consideration has also been given to safety, making this the standard for large hose reels in the future.
●Uses an electric motor to pull out and retract the hose
●Achieving low cost, compact size and light weight at the same time through a design that pays attention to detail
– Momentary switch that stops immediately when you release your hand
Safe design that allows the hose to be stopped with the force of your hand thanks to optimized winding force
●Optional control panel and operation switch can be freely selected
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Main specifications | Connection fittings | Installation location | Dimensions | Mass (approx. kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner dia. (Φ mm) | Length (m) | Material | Primary side | Secondary side | |||||||
| ORE-2520 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 25.4 | 20 | Rubber | 0.50 | [Motor] Safety increased explosion-proof type • Output: 100W • Number of poles: 4P • Rated power supply: AC200V 3-phase 50/60Hz • Rated time: Continuous • Indoor type [Hose winding speed] Approx. 20 m/min [Safety device] Hose over-pulling prevention sensor • Torque limiter | Rc1 | R1 | Floor | (1) | 125 |
| ORE-2530 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 25.4 | 30 | Rubber | 0.50 | Same as above | Rc1 | R1 | Floor | (1) | 133 |
| ORE-2540 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 25.4 | 40 | Rubber | 0.50 | Same as above | Rc1 | R1 | Floor | (1) | 142 |
| ORE-2550 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 25.4 | 50 | Rubber | 0.50 | Same as above | Rc1 | R1 | Floor | (1) | 150 |
| ORE-3220 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 31.8 | 20 | Rubber | 0.50 | Same as above | Rc1 1/4 | R1 1/4 | (2) | 146 | |
| ORE-3230 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 31.8 | 30 | Rubber | 0.50 | Same as above | Rc1 1/4 | R1 1/4 | (2) | 156 | |
| ORE-3240 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 31.8 | 40 | Rubber | 0.50 | Same as above | Rc1 1/4 | R1 1/4 | (2) | 167 | |
| ORE-3250 | Diesel, heavy oil, Gasoline *1, kerosene, general hydraulic oil, air, water | 31.8 | 50 | Rubber | 0.50 | Same as above | Rc1 1/4 | R1 1/4 | (2) | 178 | |
