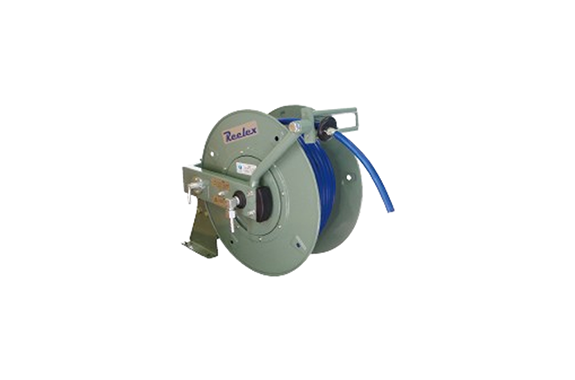

Chuhatsu Oxygen And Gas Hose Reels For General Oxygen Use
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Uses a dedicated hose for each fluid
The reel body is made of shock-resistant metal
●There is no cover on the reel, making hose replacement easy
Specifications
| Model | Fluid | Hose specifications | Maximum operating pressure (MPa) | Connection fittings (Primary side) | Installation location | Mass (about kg) | Dimensions | Replacement hose assembly Part Number | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (Φ mm) | Length (m) | Material | ||||||||
| GR-910FOXY (discontinued) | General oxygen | 9.5 | 10 | Rubber | 0.98 | Bamboo shoots Φ 11.0 | Floor / wall | 11.0 | (1) | 3H3-142 |
| GR-920FOXY | General oxygen | 9.5 | 20 | Rubber | 0.98 | Bamboo shoots Φ 11.0 | Floor / wall | 24.0 | (2) | 3H3-A0035 |
| GR-920OXY | General oxygen | 9.5 | 30 | Rubber | 0.98 | Bamboo shoots Φ 11.0 | Floor / wall | 29.0 | (3) | 3H3-A0001 |
| GR-930OXY | General oxygen | 9.5 | 30 | Rubber | 0.98 | Bamboo shoots Φ 11.0 | Floor / wall | 40.0 | (2) | 3H3-151 |
