Chuhatsu Sales Co.

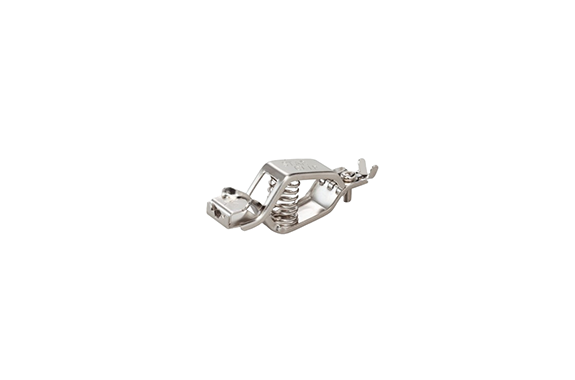

Chuhatsu Star Clip
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Convenient for connecting electrical circuits!
Its strong gripping power allows electricity to flow.
- It has a strong gripping force, allowing for safe, accurate and quick electrical circuit connections.
- Made of brass with good electrical conductivity. * Nickel-plated finish for excellent corrosion resistance.
- The clip and cord can be connected using screws, crimp terminals, or soldering.
Specifications
| type | 5A | 10A | 30A | 50A | 100A |
|---|---|---|---|---|---|
| Format | SC-5A | SC-10A | SC-30A | SC-50A | SC-100A |
| Material | Brass *Nickel plated finish | |||||
|---|---|---|---|---|---|---|

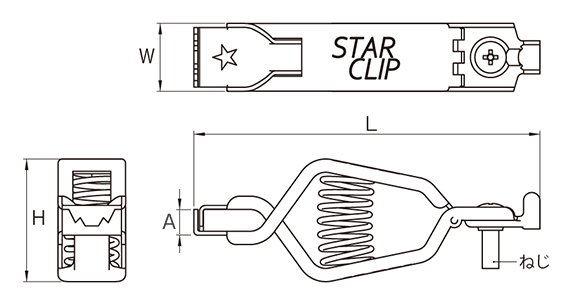

| type | At maximum opening (mm) A | Length (mm) L | Height (mm) H | Width (mm) W | Screw | Mass (g) |
| 5A | 13 | 52 | 15 | 11 | M3×5 | 8 |
| 10A | 16 | 65 | 19 | 13 | M3.5×6 | 14 |
| 30A | 20 | 67 | twenty four | 15 | M3.5×6 | 20 |
| 50A | 38 | 105 | 37 | twenty one | M5×15 | 60 |
| 100A | 34 | 125 | 42 | 26 | M5×18 | 110 |
