Chuhatsu Sales Co.

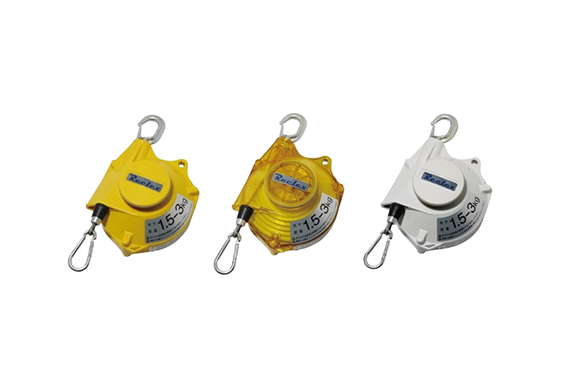

Chuhatsu STB-30/50 Series Tool Balancer
Manufacturer: Chuhatsu Sales Co., Ltd.
Features
Nylon-coated wire ensures durability, quietness, and safety
●Dial-type handle improves load adjustment operability
●The unique skeleton case allows you to see the internal state. ※STB-30YCA・STB-50YCA
Specifications
| Model | Hanging capacity (kg) | Stroke (m) | Wire specifications | Body color | Fall prevention mechanism | Mass (approx. kg) |
|---|---|---|---|---|---|---|
| STB-30A | 1.5 to 3.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | Yellow | Yes | 1.3 |
| STB-30YCA | 1.5 to 3.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | Yellow Clear | – | 1.3 |
| STB-30WA | 1.5 to 3.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | White | – | 1.3 |
| STB-50A | 3.0 to 5.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | Yellow | – | 1.4 |
| STB-50YCA | 3.0 to 5.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | Yellow Clear | – | 1.4 |
| STB-50WA | 3.0 to 5.0 | 1.3 | Outer diameter Φ 2.4 mm, Nylon coating | White | – | 1.4 |
