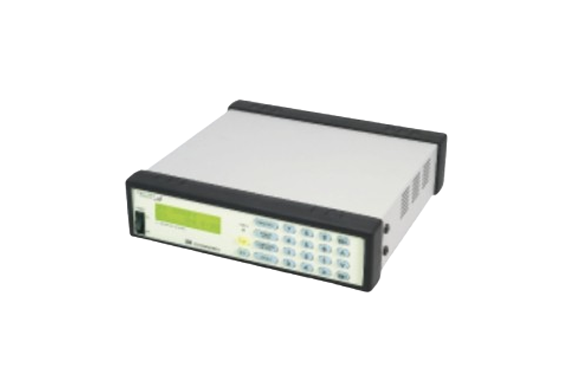

Manufacturer: Coco Research Co., Ltd
Model: KAZ-723

Features

2-channel F/V converter for analysis with wide 0.03Hz to 120kHz range, fast 7.4μs response, 16-bit resolution, deviation output, pulse processing, and flexible input support for precise industrial and research measurement.

The 2-channel F/V converter for analysis delivers a wide measurement range from 0.03 Hz to 120 kHz. It measures speed accurately across low and high frequencies. You can set the full scale and center frequency in 1 Hz steps, so you get flexible and precise control.

Moreover, the system provides a fast response of up to 7.4 μs. It processes signals quickly from pulse input to voltage output. At the same time, it keeps calculation speed within 3.5 μs, so performance stays stable.

In addition, the 2-channel F/V converter for analysis offers high resolution. It achieves 8.3 ns input resolution and uses a 16-bit D/A converter. As a result, it delivers accurate and stable analog output.

Furthermore, it supports ΔF deviation output for detailed analysis. It outputs ±10 V based on a user-defined center frequency. It also detects small fluctuations with high accuracy.

The system supports multiple input signals, including logic, zero-crossing, NPN open collector, and line driver. It connects easily with encoders, sensors, and motor drivers. Therefore, it works well in different systems.

Moreover, it includes pulse processing functions such as frequency division and moving average. These features improve signal quality and measurement accuracy.

In addition, the device offers a user-friendly design. It includes a 2-row LCD and a numeric keypad for easy setup. It also stores previous settings, so operation becomes faster.

Finally, it provides electrical isolation between input, output, and power supply. This design improves safety and system stability.
