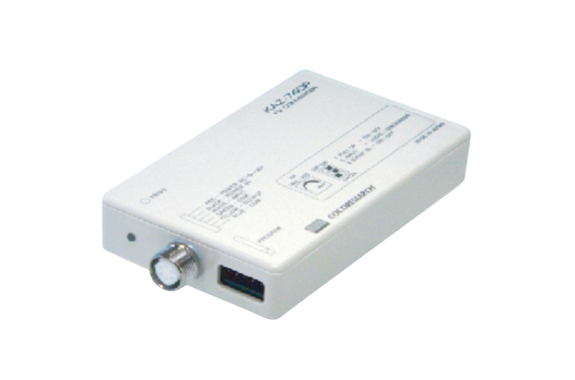

Coco KAZ-740P Compact F/V Converter

Manufacturer: Coco Research Co., Ltd
Model: KAZ-740P

Features

2-channel F/V converter for analysis with compact design, fast 1 ms response, wide speed range tracking, and reliable performance for in-vehicle and industrial measurement.

The 2-channel F/V converter for analysis offers a compact design and high performance. It fits easily in your hand and supports in-vehicle testing. It also delivers reliable and efficient measurement in limited spaces.

Moreover, it uses the advanced Periodic™ method. As a result, it tracks sudden speed changes and stops accurately. It also supports a wide measurement range from low to high speeds. Therefore, it ensures stable performance in different conditions.

In addition, the analog output updates as fast as 1 ms. This fast response improves real-time signal processing. As a result, the system maintains accuracy and responsiveness.

Overall, the 2-channel F/V converter for analysis combines precision, speed, and flexibility. It performs well in demanding applications and industrial environments.

Specifications

name	Compact F/V converter
Model	KAZ-740P™
Measurement method	Periomatic System

Input points	1 point
Measurement range	0.000002Hz (2μHz) – 100kHz *[Starting with serial number SER.40000 (manufactured in January 2018), the frequency range has been changed to 0.006Hz – 100kHz]
Full scale	0.0002Hz (0.2mHz) – 100kHz (Factory default setting: Main full scale 100kHz / Sub full scale 1kHz)
Measurement resolution	0.125μs [From serial number SER.40000 (manufactured in January 2018), 42ns (24MHz) changed to 167ns when chatter suppression is ON]
Input method	Single-phase pulse
Input circuit characteristics
Zero-crossing signal	Input sensitivity	±100mV – ±200mV Variable (TYP) (Sine wave 10kHz or less) ±110mV Guaranteed
	Input resistance	100kΩ when not pulled up
Logic signal	Trigger level	0 – 5V variable
	Input sensitivity	100mV – 200mV (for trigger levels of 0-5V)
	Input resistance	100kΩ when not pulled up 3.3kΩ when pulled up, connected to +5V
	Pull-up switch	ON/OFF switching via DIP switch
	Input pulse width	2μs or longer (Trigger level: 2V, Input signal: 0-5V square wave)
Input frequency response	100kHz (-3dB, -6dB/oct)
Input voltage tolerance	±35V
Trigger direction	Standing Up
Input indicator	Red LED blinks when pulse is input (continuous lighting with high-speed pulses).
