CONTEY JAPAN COT-5 Series Interface For Lubrisensor And Flowsensor
Manufacturer: CONTEY JAPAN Co., Ltd.
Model : COT-5 series
Features
- It is an intermediate amplifier for the configuration where sensor signals are directly fed into a sequencer.
- To output sensor signals into a sequencer, this interface should be used together with the sensor so that it can lower the current to microamp level and amplify the signals enough to activate the sequencer.
- The outputs are transistor outputs, which means that it stays ON when the sensor is activated (detecting fluid).
- To prevent excessive vibration, silicone rubber is partially applied to this interface.
- The interface is available in 1, 4, 8, 16, and 24 points.
| Model | Sensor | A(mm) | A´(mm) | Height | Weight(g) |
|---|---|---|---|---|---|
| COT－5－1 | 1 | Figure below | Figure below | 18 | 32 |
| COT－5－4 | 4 | 55 | 45 | 32 | 78 |
| COT－5－8 | 8 | 75 | 65 | 32 | 127 |
| COT－5－16 | 16 | 135 | 125 | 32 | 237 |
| COT－5－24 | 24 | 200 | 190 | 32 | 318 |
- The models in the table above are standard products with NPN transistor outputs.
- Products with model numbers that end with the letter P have PNP transistor outputs.
- PNP transistor output is available only for COT-5-4P.
- The models with PNP transistor outputs type have a circuit board which is the same size as those with NPN transistor outputs.

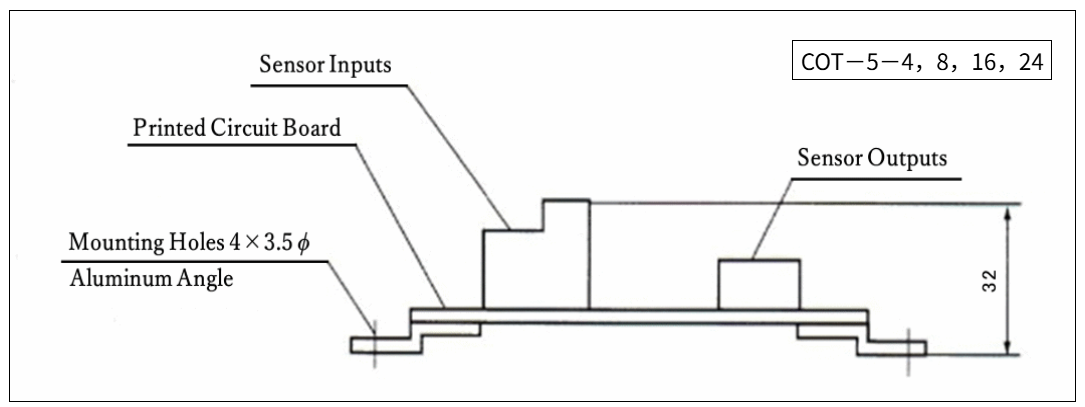

Drawing for Interface
