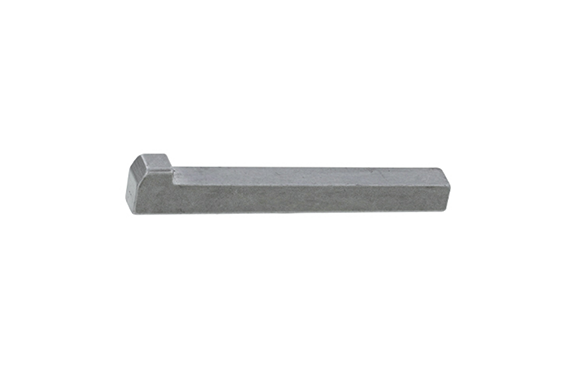

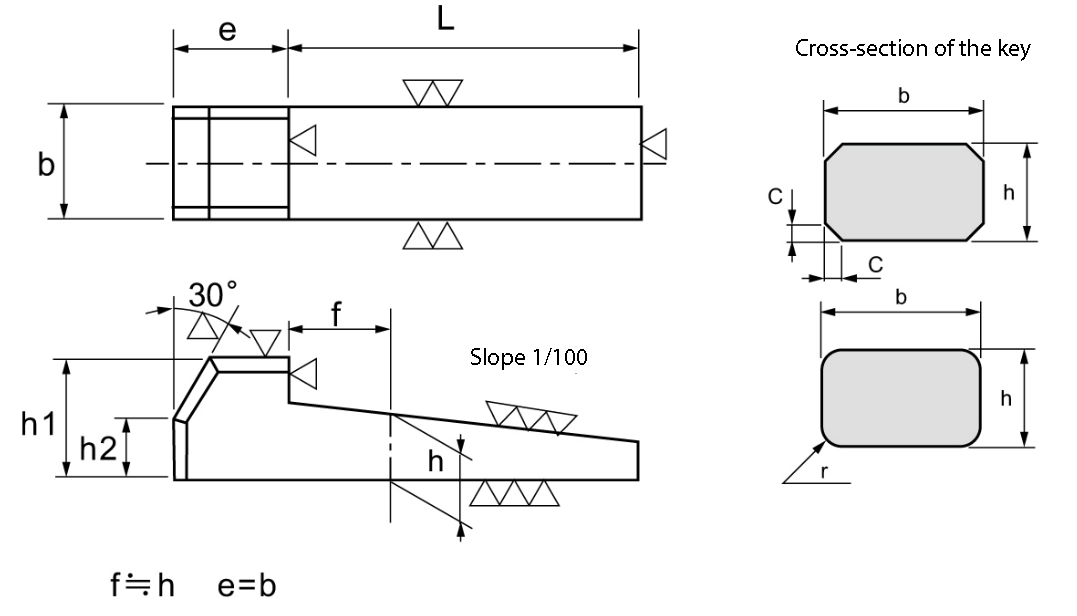

D0-K027 Gradient Key With Head (Old JIS)
Model: D0-K027
Iron (or standard).
Plain.
| Key dimensions (b×h) | b | h | hi | h2 | Radius or C | ||
|---|---|---|---|---|---|---|---|
| Standard dimensions | Tolerance (h9) | Standard dimensions | Tolerance (h10) | Dimension | Dimension | ||
| 4X4 | 4 | 0 -0.030 | 4.2 | 0 -0.048 | 7 | 4 | 0.5 |
| 5X5 | 5 | 5.2 | 8 | 5 | |||
| 7X7 | 7 | 0 -0.036 | 7.2 | 0 -0.058 | 10 | 7 | |
| 8X8 | 8 | 8.2 | 12 | 8 | 0.8 | ||
| 10X8 | 10 | 8.2 | 12 | 8 | |||
| 12X8 | 12 | 0 -0.043 | 8.2 | 12 | 8 | ||
| 15X10 | 15 | 10.2 | 0 -0.070 | 15 | 10 | ||
| 18X12 | 18 | 12.2 | 18 | 12 | 1.2 | ||
| 20X13 | 20 | 0 -0.052 | 13.2 | 20 | 13 | ||
| 24X16 | 24 | 16.2 | 24 | 16 | |||
| 28X18 | 28 | 18.2 | 0 -0.084 | 28 | 18 | ||
| 32X20 | 32 | 0 -0.062 | 20.2 | 30 | 20 | 2.0 | |
| 35X22 | 35 | 22.3 | 32 | 22 | |||
| 38X24 | 38 | 24.3 | 36 | 24 | |||
| 42X26 | 42 | 26.3 | 40 | 26 | |||
| 45X28 | 45 | 28.3 | 42 | 28 | |||
| 50X31.5 | 50 | 31.8 | 0 -0.100 | 47 | 32 | ||
