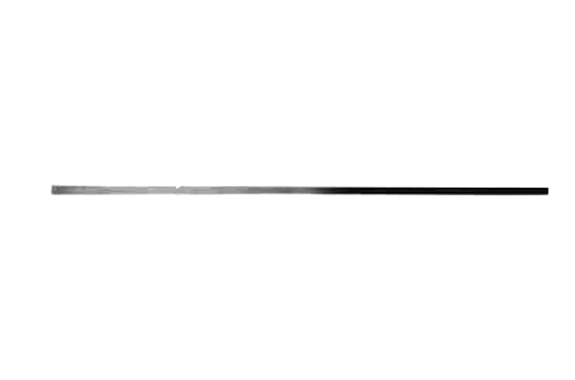

D0-KN06 Yakkii (New JIS･Standard)
Model: D0-KN06
Iron (or standard).
Plain.

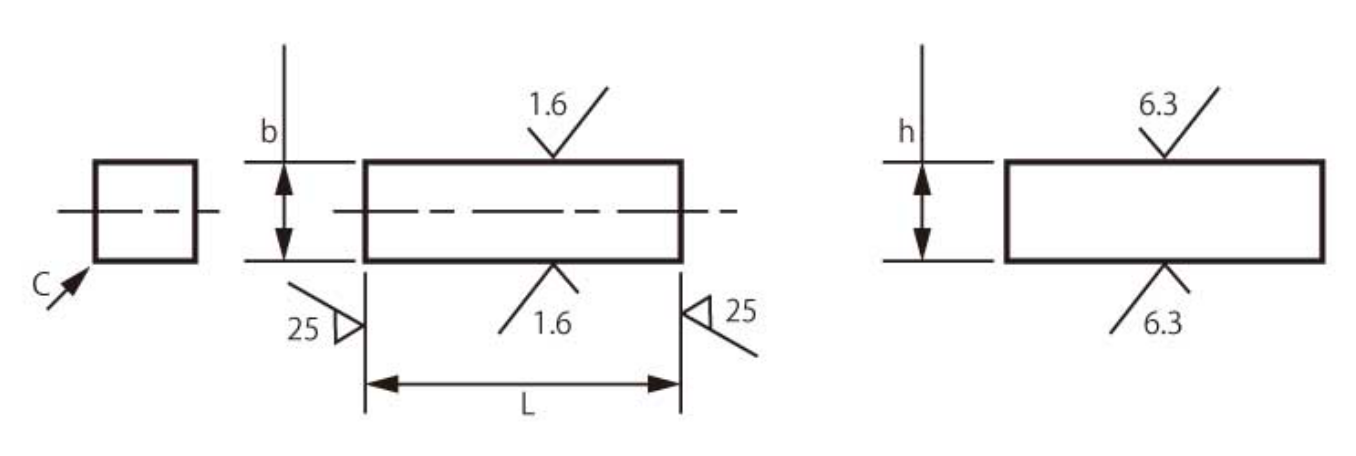

| Size (b × h) | Length | b | h | c | |||
|---|---|---|---|---|---|---|---|
| L | Standard Dimension | Tolerance (h9) | Standard Dimension | Tolerance | |||
| 5X5 | 300 | 5 | 0 -0.030 | 5 | 0 -0.030 | h9 | 0.25〜0.40 |
| 6X6 | 6 | 6 | |||||
| 7X7 | .7 | 0 -0.036 | 7 | 0 -0.036 | |||
| 8X7 | 8 | 7 | 0 -0.090 | h11 | |||
| 10X8 | 10 | 8 | 0.40〜0.60 | ||||
| 12X8 | 12 | 0 -0.043 | 8 | ||||
| 14X9 | 14 | 9 | |||||
| 16X10 | 16 | 10 | |||||
| 18X11 | 18 | 11 | 0 -0.110 | ||||
| 20X12 | 20 | 0 -0.052 | 12 | 0.60〜0.80 | |||
| 22X14 | 22 | 14 | |||||
| 25X14 | 25 | 14 | |||||
| 28X16 | 28 | 16 | |||||
| 32X18 | 32 | 0 -0.062 | 18 | ||||
| 36X20 | 36 | 20 | 0 -0.130 | 1.00〜1.20 | |||
| 40X22 | 40 | 22 | |||||
| 45X25 | 45 | 25 | |||||
| 50X28 | 50 | 28 | |||||
