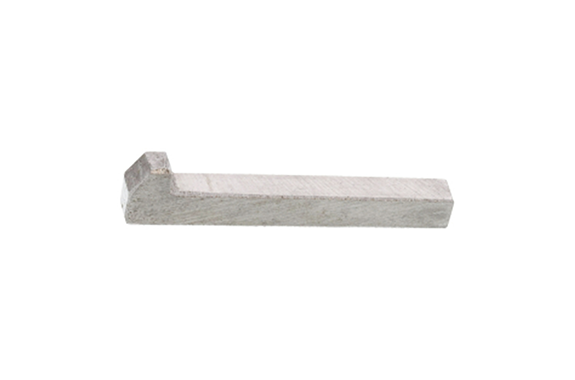

D1-K006 Slope Key With Head JIS (Hime)
Model: D1-K006
S45C.
Plain.

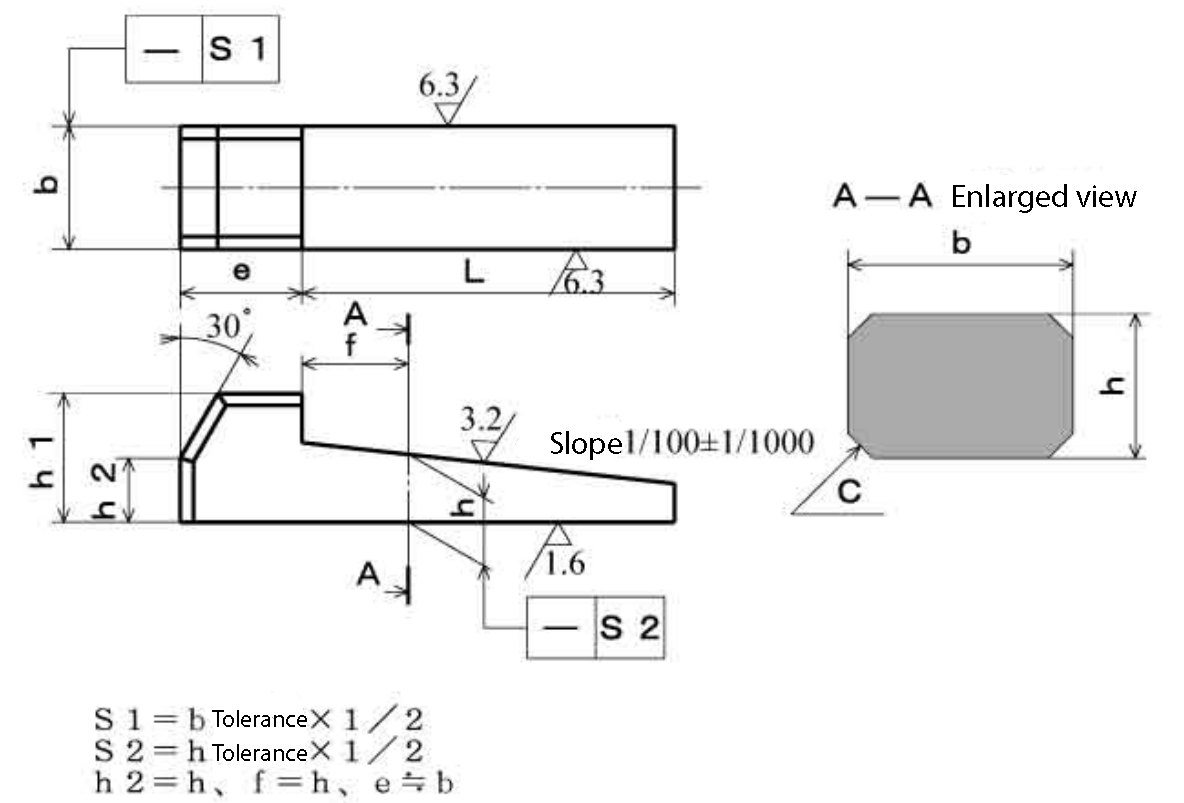

| Key nominal size (b × h) | b | h | h 1 | c | |||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance (h9) | Standard dimension | Tolerance | Dimension | Tolerance | ||
| 2X2 | 2 | 0 -0.025 | 2 | 0 -0.025 | h9 | — | 0.16 〜0.25 |
| 3X3 | 3 | 3 | — | ||||
| 4X4 | 4 | 0 -0.030 | 4 | 0 -0.030 | 7 | ||
| 5X5 | 5 | 5 | 8 | 0.25 〜0.40 | |||
| 6X6 | 6 | 6 | 10 | ||||
| (7 X 7) | 7 | 0 -0.036 | 7.2 | 0 -0.036 | 10 | ||
| 8X7 | 8 | 7 | 0 -0.090 | h11 | 11 | ||
| 10 X 8 | 10 | 8 | 12 | 0.40 〜0.60 | |||
| 12 X 8 | 12 | 0 -0.043 | 8 | 12 | |||
| 14 X 9 | 14 | 9 | 14 | ||||
| (15 X 10) | 15 | 10.2 | 0 -0.070 | h10 | 15 | ||
| 16 X 10 | 16 | 10 | 0 -0.090 | h11 | 16 | ||
| 18 X 11 | 18 | 11 | 0 -0.110 | 18 | |||
| 20 X 12 | 20 | 0 -0.052 | 12 | 20 | 0.60 〜0.80 | ||
| 22 X 14 | 22 | 14 | 22 | ||||
| (24 X 16) | 24 | 16.2 | 0 -0.070 | h10 | 24 | ||
| 25 X 14 | 25 | 14 | 0 -0.110 | h11 | 22 | ||
| 28 X 16 | 28 | 16 | 25 | ||||
| 32 X 18 | 32 | 0 -0.062 | 18 | 28 | |||
| (35 X 22) | 35 | 22.3 | 0 -0.084 | h10 | 32 | 1.00〜1.20 | |
| 36 X 20 | 36 | 20 | 0 -0.130 | h11 | 32 | ||
| (38 X 24) | 38 | 24.3 | 0 -0.084 | h10 | 36 | ||
| 40 X 22 | 40 | 22 | 0 -0.130 | h11 | 36 | ||
| (42 X 26) | 42 | 26.3 | 0 -0.084 | h10 | 40 | ||
| 45 X 25 | 45 | 25 | 0 -0.130 | h11 | 40 | ||
| 50 X 28 | 50 | 28 | 45 | ||||
| 56 X 32 | 56 | 0 -0.074 | 32 | 0 -0.160 | 50 | 1.60〜2.00 | |
| 63 X 32 | 63 | 32 | 50 | ||||
| 70 X 36 | 70 | 36 | 56 | ||||
| 80 X 40 | 80 | 40 | 63 | 2.50 〜3.00 | |||
| 90 X 45 | 90 | 0 -0.087 | 45 | 70 | |||
| 100 X 50 | 100 | 50 | 80 | ||||
