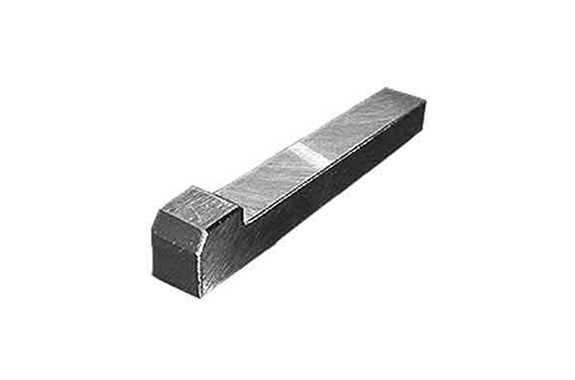

D1-K007 Slopekey With Head Old JIS (Hi)
Model: D1-K007
S45C.
Plain.

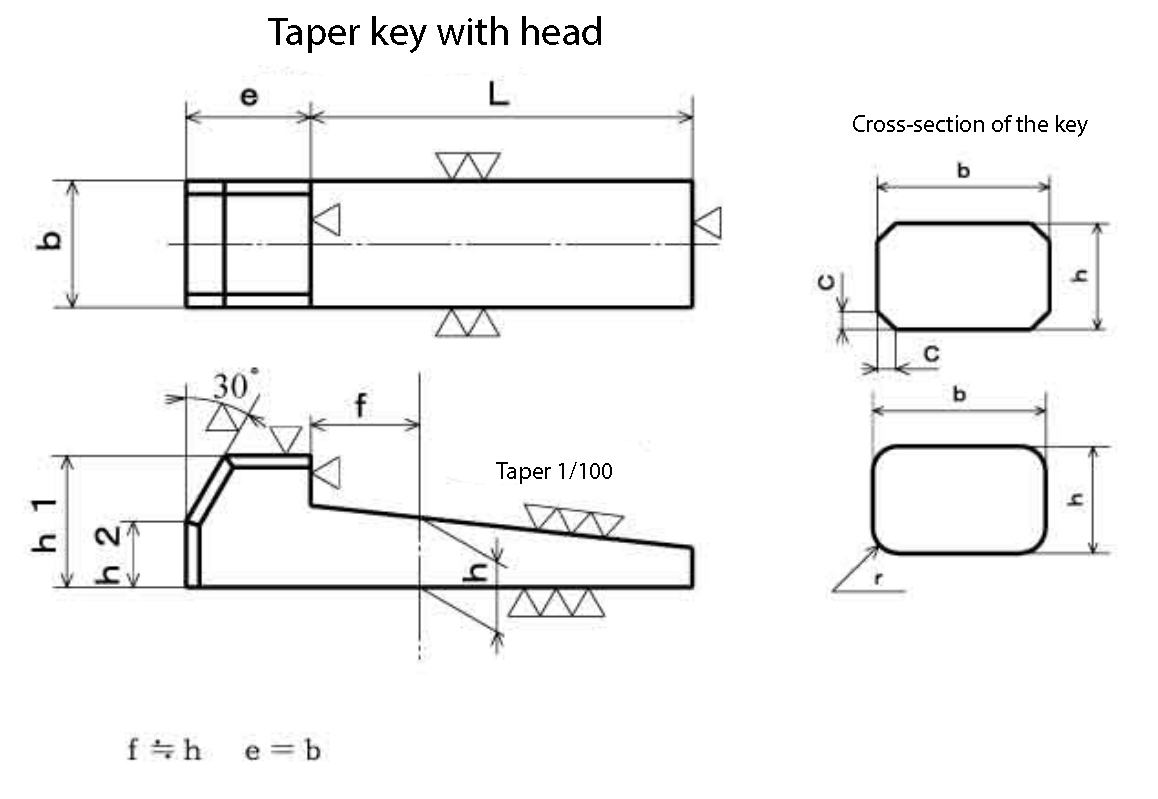

| Key nominal size (b × h) | b | h | h 1 | h 2 | r or c | ||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance (h9) | Standard dimension | Tolerance | Dimension | Dimension | ||
| 4 X 4 | 4 | 0 -0.030 | 4.2 | 0 -0.048 | 7 | 4 | 0.5 |
| 5 X 5 | 5 | 5.2 | 8 | 5 | |||
| 7 X 7 | 7 | 0 -0.036 | 7.2 | 0 -0.058 | 10 | 7 | |
| 10 X 8 | 10 | S.2 | 12 | 8 | 0.8 | ||
| 12 X 8 | 12 | 0 -0.043 | 8.2 | 12 | 8 | ||
| 15 X 10 | 15 | 10.2 | 0 -0.070 | 15 | 10 | ||
| 18 X 12 | 18 | 12.2 | 18 | 12 | 1.2 | ||
| 20 X 13 | 20 | 0 -0.052 | 13.2 | 20 | 13 | ||
| 24 X 16 | 24 | 16.2 | 24 | 16 | |||
| 28 X 18 | 28 | 18.2 | 0 -0.084 | 28 | 18 | ||
| 32 X 20 | 32 | 0 -0.062 | 20.2 | 30 | 20 | 2.0 | |
| 35 X 22 | 35 | 22.3 | 32 | 22 | |||
| 38 X 24 | 38 | 24.3 | 36 | 24 | |||
| 42 X 26 | 42 | 26.3 | 40 | 26 | |||
| 45 X 28 | 45 | 28.3 | 42 | 28 | |||
| 50 X 31.5 | 50 | 31.8 | 0 -0.100 | 47 | 32 | ||
