D2-K004 Parallel Key (New JIS (Hinode))
Model: D2-K004
S45C, Stainless steel (303, 304,…), SUS316.
Plain.
Unit: mm

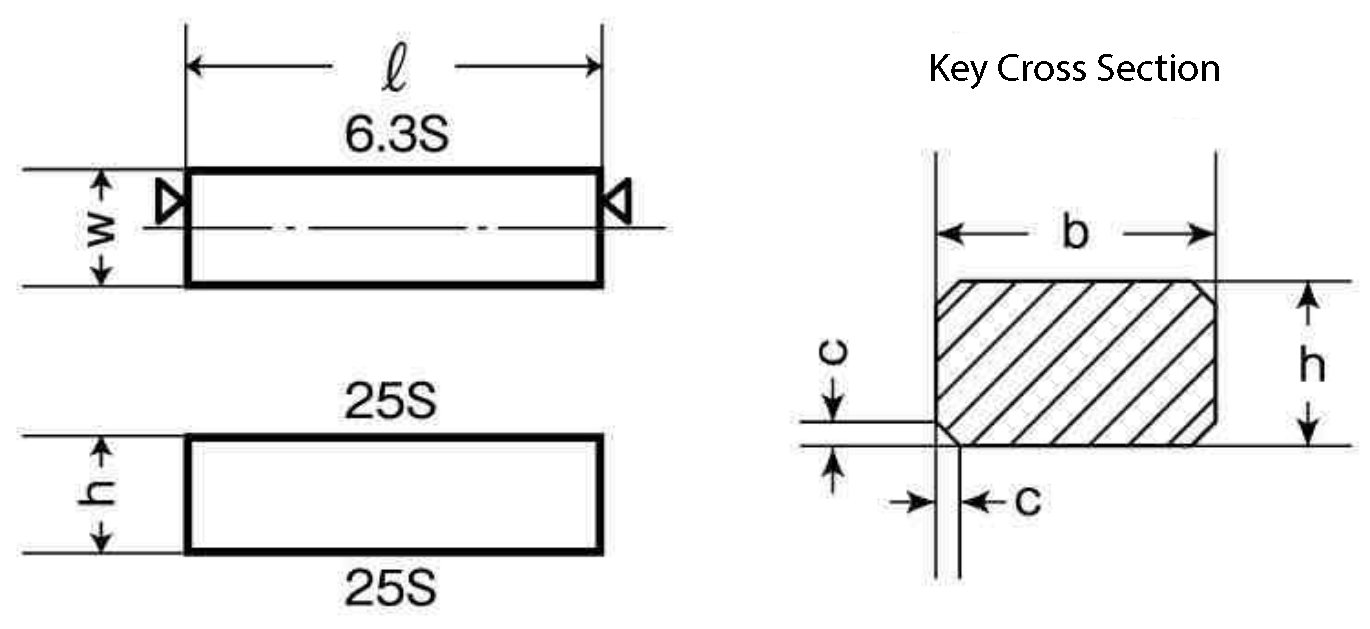

| Key Nominal Size (W × h) | Key Dimensions | ||||||
|---|---|---|---|---|---|---|---|
| W | h | C | L | ||||
| Standard dimension | Tolerance (h9) | Standard dimension | Tolerance | Length | |||
| 32 x 18 | 32 | 0 -0.062 | 18 | 0 -0.110 | h11 | 0.60〜0.80 | 300 |
