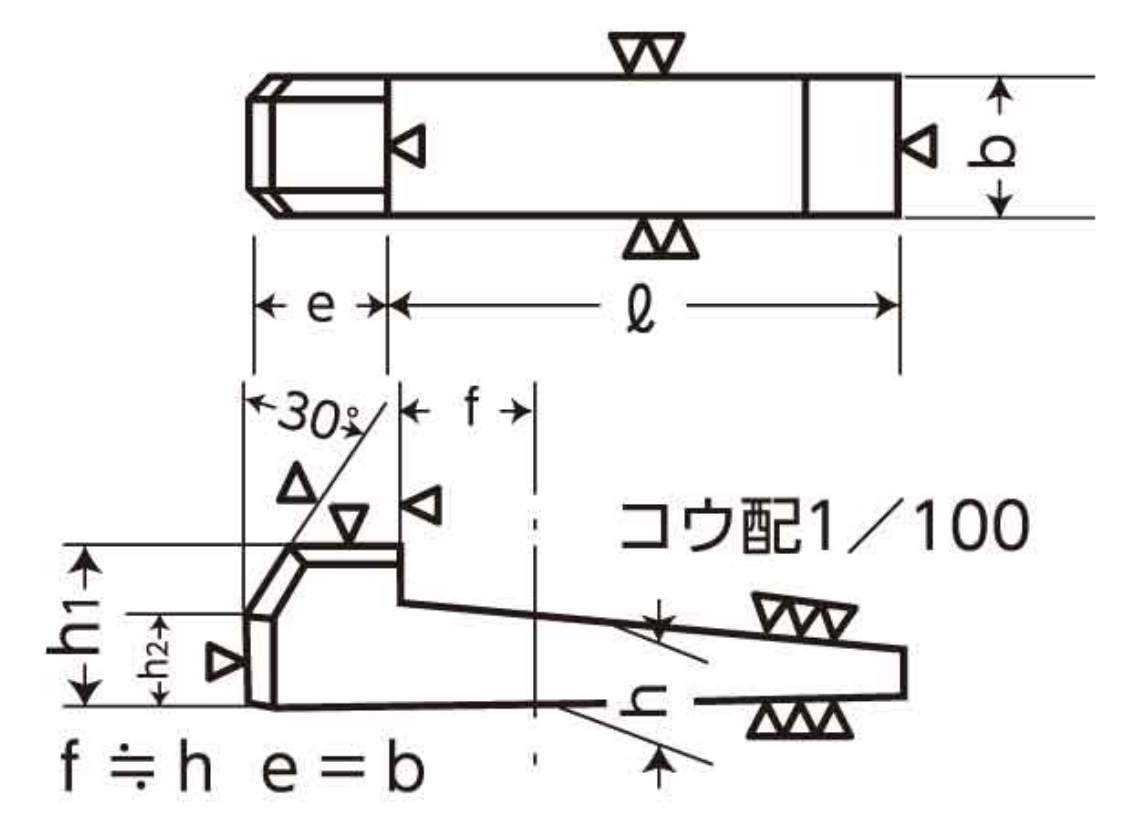

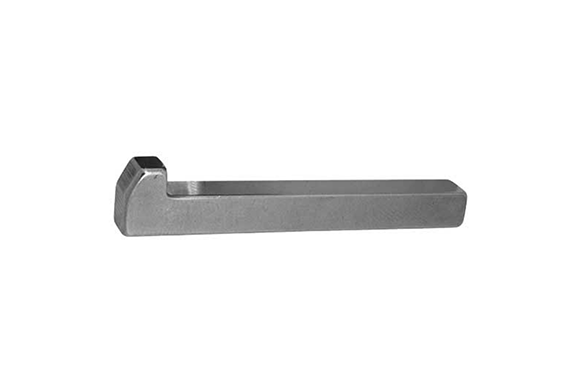

D2-K006 Slope Key With Head JIS (Hino)
Model: D2-K006
S45C.
Plain.
Unit: mm
| Key nominal dimensions W×h | Key dimensions | ||||||
|---|---|---|---|---|---|---|---|
| W | h | C | L | ||||
| Standard Dimension | Tolerance (h9) | Standard Dimension | Tolerance | Length | |||
| 4X4 | 4 | 0 -0.030 | 4 | 0 -0.030 | h9 | 0.16〜0.25 | 30 |
| 5X5 | 5 | 5 | 0.25 〜0.40 | 40 | |||
| 6X6 | 6 | 6 | 45 | ||||
| 7X7 | 7 | 0 -0.036 | 7.2 | 0 -0.036 | 50 | ||
| 8X7 | 8 | 7 | h11 | 65 | |||
| 10X8 | 10 | 8 | 0 -0.090 | 0.40 〜0.60 | 75 | ||
| 12X8 | 12 | 0 -0.043 | 8 | 90 | |||
| 14X9 | 14 | 9 | 100 | ||||
| 15X10 | 15 | 10.2 | 110 | ||||
| 16X10 | 16 | 10 | 120 | ||||
| 18X11 | 18 | 11 | 0 -0.0110 | 135 | |||
| 20X12 | 20 | 0 -0.052 | 12 | 0.60 〜0.80 | 150 | ||
| 22X14 | 22 | 14 | 160 | ||||
| 24X16 | 24 | 16.2 | 180 | ||||
| 25X14 | 25 | 14 | h11 | 180 | |||
| 28X16 | 28 | 16 | 210 | ||||
| 32X18 | 32 | 0 -0.062 | 18 | 240 | |||
| 35X22 | 35 | 22.3 | 0 -0.130 | 260 | |||
| 36X20 | 36 | 20 | 1.00 〜1.20 | 260 | |||
| 38X24 | 38 | 24.3 | 285 | ||||
| 40X22 | 40 | 22 | 300 | ||||
| 42X26 | 42 | 26.3 | 315 | ||||
| 45X25 | 45 | 25 | 340 | ||||
| 50X28 | 50 | 28 | 375 | ||||
| 56X32 | 56 | 0 -0.074 | 32 | 0 -0.160 | 1.60 〜2.00 | 415 | |
| 63X32 | 63 | 32 | 450 | ||||
| 70X36 | 70 | 36 | 525 | ||||
