Daico Thermotec
Daico DN series Drying and Draining Air Blower, High Pressure Blower
Manufacturer: Daico Thermotec Co.,Ltd
Model: DN series
Features

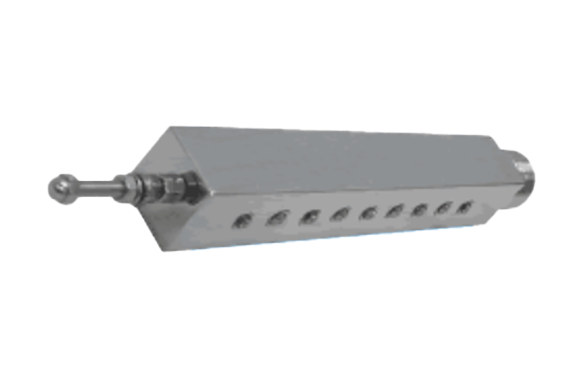

The DN series is a slit-type nozzle for air blowing exclusively for high-pressure blowers.

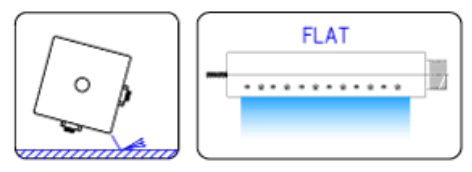

It ensures a stable linear air flow from low to high air speeds, allowing for even removal during air blowing processes such as drying and draining on the line.
The specifications of the jet slit are the same as those of the CN series for high-pressure blowers , but the DN series minimizes installation space by attaching the air inlet to the end.
Specifications
| Nozzle Model | Slit Length | Weight (reference) | Slit Width | Air inlet |
|---|---|---|---|---|
| DN-100 | 100mm | 420g | 1mm | PT(R)1″ (external thread) |
| DN-150 | 150mm | 530g | ||
| DN-200 | 200mm | 660g |
