Daico Thermotec

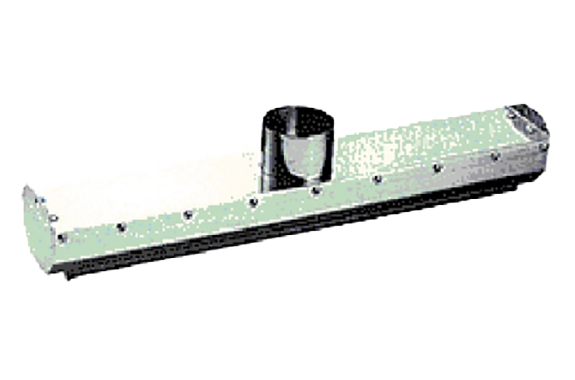

Daico KT/KTX Series For Turbofans
Manufacturer: Daico Thermotec Co.,Ltd
Model: KT/KTX Series
Features
The internal specifications of the nozzle for the KT series are determined according to the application and other conditions. Please feel free to consult us when selecting a nozzle.
When using a long nozzle with a strong wind speed, we recommend providing multiple nozzle inlets to reduce pressure loss in the piping.
Multi-hole and suction types are also available as custom orders.
Specifications
| Nozzle Model | Slit Length | Slit Width | Air inlet |
|---|---|---|---|
| KT-400 | 400mm | Variable from 2mm to 10mm (Note 1) | Standard size Φ75 Φ50 Φ65 |
| KT-500 | 500mm | ||
| KT-600 | 600mm | ||
| KT-700 | 700mm | ||
| KT-800 | 800mm | ||
| KTX-800 | 800mm | Standard sizes Φ100 Φ75 Φ125 | |
| KTX-900 | 900mm | ||
| KTX-1000 | 1000mm | ||
| KTX-1100 | 1100mm | Standard size Φ125 Φ100 | |
| KTX-1200 | 1200mm | ||
| KTX-1300 | 1300mm | ||
| KTX-1400 | 1400mm | ||
| KTX-1500 | 1500mm | ||
| KTX-1600 | 1600mm |
