Daico MX series Drying And Draining Air Blow, Slit-Type Air Nozzle For Compressors
Manufacturer: Daico Thermotec Co.,Ltd
Model: MX series
Features

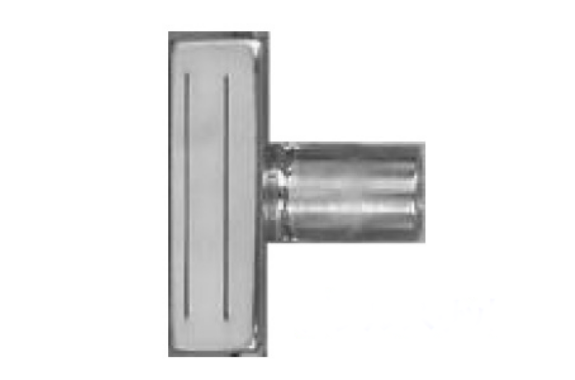

This nozzle delivers the strongest flat air in the Air Pron series. Air is sprayed from two slits at different angles (double slit type), so one nozzle can be used for two processes, providing near-perfect performance for draining work, etc.
Specifications
| Nozzle Type | Slit Length | Weight (reference) | Slit Width | Air inlet |
|---|---|---|---|---|
| MX-10 | 10mm | 75g | 0.15mm x 2 double slit type | PS(Rp)1/4″ (internal thread) |
| MX-20 | 20mm | 80g | ||
| MX-30 | 30mm | 95g | ||
| MX-40 | 40mm | 105g | ||
| MX-50 | 50mm | 115g |

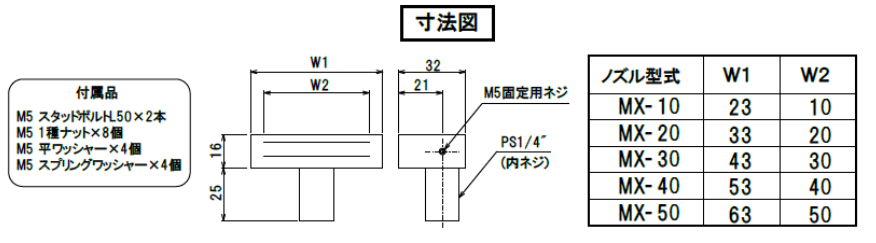

| Nozzle Type | W1 | W2 |
|---|---|---|
| MX-10 | twenty three | 10 |
| MX-20 | 33 | 20 |
| MX-30 | 43 | 30 |
| MX-40 | 53 | 40 |
| MX-50 | 63 | 50 |
The MX nozzle comes with an M5 stud bolt, which can be removed if not needed. (In that case, simply plug it with an M5 screw.)
The performance of a compressor nozzle varies greatly depending on the thickness and length of the piping, and whether or not it is equipped with valves or other piping fixtures.
We recommend using piping that is at least the size of the inlet and as short as possible.
