Daico Thermotec
Daico RCP & RCI Series For Rapid Drying
Manufacturer: Daico Thermotec Co.,Ltd
Model: RCP & RCI Series
Features

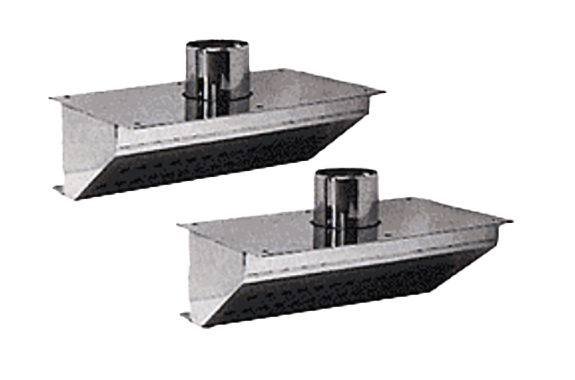

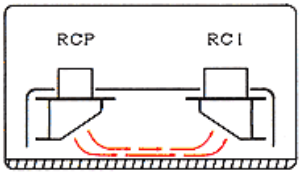

This series is mainly used for rapid drying, instant heating, and similar processes in conveyor lines. It uses both spray-type and suction-type designs. The nozzle is installed in pairs as shown in the diagram.
The RCP and RCI series are designed based on our company’s unique expertise and rich experience. With a robust spray and suction power, the system flows hot air strongly in both the conveyor direction and reverse. By positioning it as shown in the diagram, efficient drying and heating are achieved
Specifications
| Nozzle Type | Spray Range Length | Spray Tip Design | Inlet |
|---|---|---|---|
| RCP-1 | 100 mm | φ50, φ65, φ75 | φ50, φ65, φ75 |
| RCP-2 | 2400 mm | 2-stage multi-hole type | φ75, φ100 |
| RCP-3 | 2400 mm | 2-stage multi-hole type | φ100, φ125 |
| RCI-1 | 100 mm | φ50, φ65, φ75 | φ50, φ65, φ75 |
| RCI-2 | 2400 mm | 2-stage multi-hole type | φ75, φ100 |
| RCI-3 | 2400 mm | 2-stage multi-hole type | φ100, φ125 |
