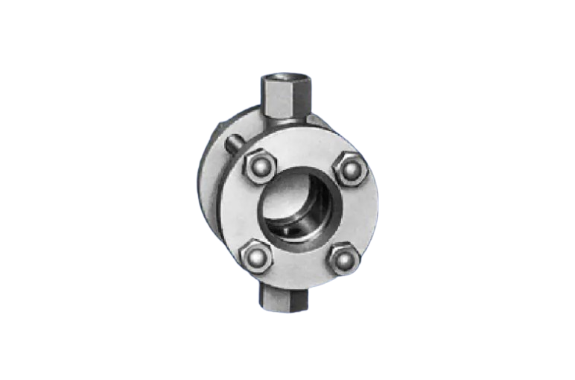

Daido 23 Type Screwed (80A)
Manufacturer: DAIDO MACHINES CO., LTD
Model: 23 Type Screwed
Feature
- 23-type screwed sight glasses are suitable are suitable for middle pressure lines.
- Available materials are carbon steel and stainless steel.
- Socket weld connection type is also available.

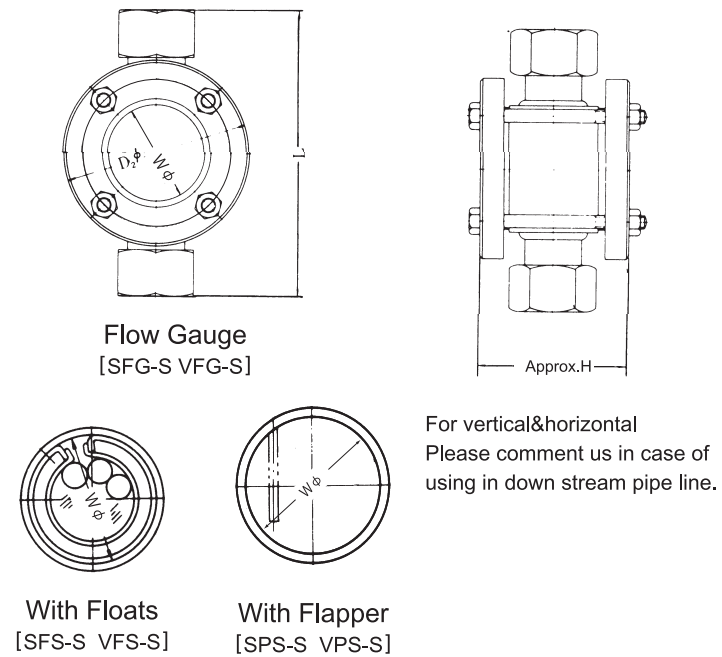

Specifications
| NOMINAL DIA | WINDOW DIA NCY/NCNY | PIPE & BODY DIA NCNY・P / NCYF | FACE TO FACE L | HEIGHT APPROX.H |
| 20A | 3/4″ | 50 / 35 | 190 | 114 |
| 25 | 1″ | 50 / 35 | 190 | 114 |
| 40 | 1-1/2″ | 65 / 50 | 220 | 148 |
| 50 | 2″ | 75 / 60 | 260 | 162 |
| 65 | 2-1/2″ | 90 / 80 | 300 | 190 |
