Daido Special Filter DFPC
Manufacturer: DAIDO MACHINES CO., LTD
Model: DFPC
Feature
- Hybrid Capsule Filter

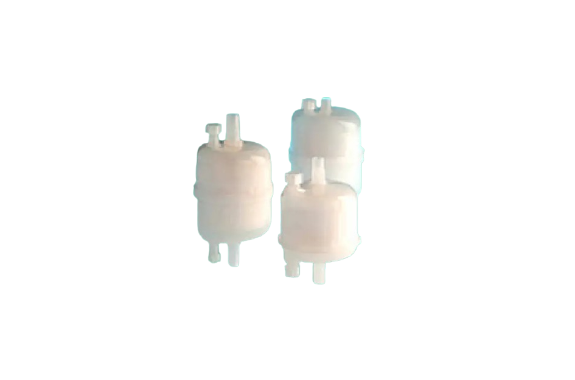

- DFPC is capsule type filter made from polypropylene.
Specifications
| Materials of Composition | Hardware / Polypropylene Media / Any kinds of materials we supply |
| Filtration Precision | Depending on material of media |
| Connection and Dimensions | Outside diameter: 72mm Length: 139mm R1/2 (PT1/2), R1/4 (PT1/4), F (Ferrule), SW (Swagelok type) |
| Maximum Differential Pressure | 0.39MPa |
| Maximum Operating Temperature | 60°C |
| Applicable Fluids | Pure water, Photoresist, etc |

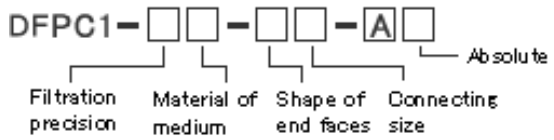

| Model Code |  |
