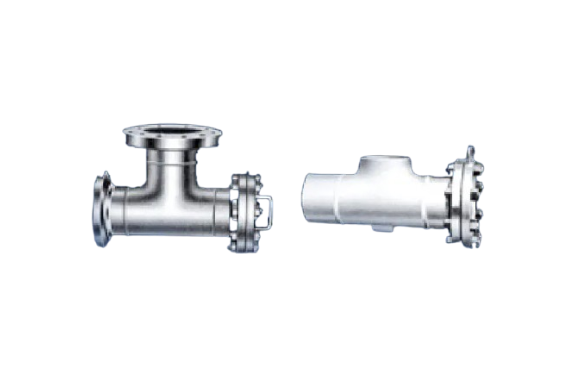

Daido T-Type Strainers T1 Type
Manufacturer: DAIDO MACHINES CO., LTD
Model: T1 type
Feature
- T-type strainers are installed at 90゜ bend piping.
- The cylindrical element housed in the body can be taken out to horizontal center line by removing the cover.

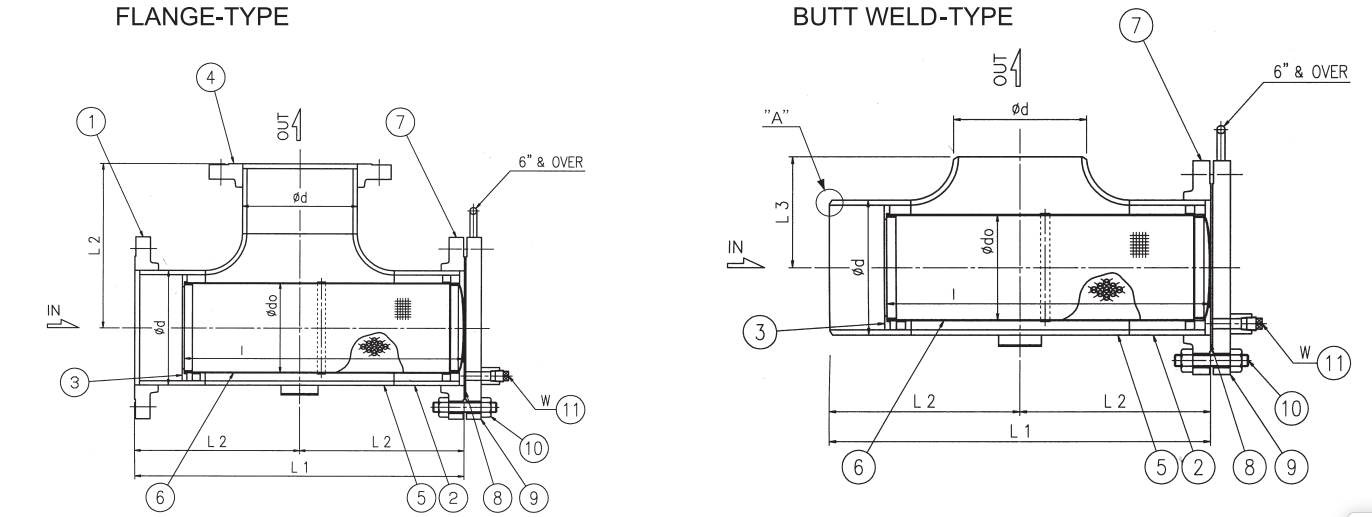

Drawing
| NO. | NAME | NO. | NAME |
| 1 | Line flange | 7 | Body flange |
| 2 | Body pipe | 8 | Gasket |
| 3 | Seat plate | 9 | Cover flange |
| 4 | Line flange | 10 | Bolt / nut |
| 5 | Body tee | 11 | Plug |
| 6 | Element |
Dimension (Flange-Type)
| CONN.SIZE φ d | L1 | L2 | W | ELEMENT φ d0 | ELEMENT ℓ | 150Lb WEIGHT (kg) | 300Lb WEIGHT (kg) | |
| 40A | 1-1/2″ | 260 | 130 | 3/8″ | 28 | 220 | 8 | 14 |
| 50 | 2″ | 290 | 145 | 3/8″ | 38 | 240 | 12 | 17 |
| 65 | 2-1/2″ | 330 | 165 | 3/8″ | 50 | 270 | 19 | 26 |
| 80 | 3″ | 370 | 185 | 1/2″ | 60 | 305 | 23 | 35 |
| 100 | 4″ | 410 | 205 | 1/2″ | 80 | 345 | 35 | 54 |
| 125 | 5″ | 460 | 230 | 1/2″ | 100 | 390 | 47 | 76 |
| 150 | 6″ | 510 | 255 | 1/2″ | 120 | 430 | 66 | 107 |
| 200 | 8″ | 620 | 310 | 1/2″ | 170 | 530 | 97 | 154 |
| 250 | 10″ | 720 | 360 | 3/4″ | 220 | 620 | 150 | 237 |
| 300 | 12″ | 870 | 435 | 3/4″ | 250 | 760 | 232 | 404 |
| 350 | 14″ | 1030 | 515 | 1″ | 275 | 900 | 370 | 463 |
| 400 | 16″ | 1140 | 570 | 1″ | 310 | 1000 | 423 | 625 |
| 450 | 18″ | 1300 | 650 | 1″ | 350 | 1150 | 554 | 843 |
| 500 | 20″ | 1400 | 700 | 1″ | 400 | 1250 | 689 | 1067 |
| 550 | 22″ | 1500 | 750 | 1″ | 450 | 1350 | 867 | 1372 |
| 600 | 24″ | 1650 | 825 | 1″ | 500 | 1500 | 1090 | 1547 |
Dimension (Butt Weld-Type)
| CONN.SIZE φ d | L1 | L2 | L3 | W | ELEMENT φ d0 | ELEMENT ℓ | 150Lb WEIGHT (kg) | 300Lb WEIGHT (kg) |
| 40A 1-½″ | 260 | 130 | 57.2 | ⅜″ | 28 | 220 | 5 | 8 |
| 50 2″ | 290 | 145 | 63.5 | ⅜″ | 38 | 240 | 8 | 11 |
| 65 2-½″ | 330 | 165 | 76.3 | ⅜″ | 50 | 270 | 11 | 17 |
| 80 3″ | 370 | 185 | 85.7 | ½″ | 60 | 305 | 14 | 22 |
| 100 4″ | 410 | 205 | 104.8 | ½″ | 80 | 345 | 23 | 33 |
| 125 5″ | 460 | 230 | 123.8 | ½″ | 100 | 390 | 31 | 48 |
| 150 6″ | 510 | 255 | 142.9 | ½″ | 120 | 430 | 40 | 61 |
| 200 8″ | 620 | 310 | 177.8 | ½″ | 170 | 530 | 67 | 99 |
| 250 10″ | 720 | 360 | 215.9 | ¾″ | 220 | 620 | 106 | 157 |
| 300 12″ | 870 | 435 | 254.0 | ¾″ | 250 | 760 | 163 | 235 |
| 350 14″ | 1030 | 515 | 279.4 | 1″ | 275 | 900 | 223 | 324 |
| 400 16″ | 1140 | 570 | 304.8 | 1″ | 310 | 1000 | 301 | 417 |
| 450 18″ | 1300 | 650 | 342.9 | 1″ | 350 | 1150 | 402 | 554 |
| 500 20″ | 1400 | 700 | 381.0 | 1″ | 400 | 1250 | 507 | 689 |
| 550 22″ | 1500 | 750 | 419.1 | 1″ | 450 | 1350 | 648 | 867 |
| 600 24″ | 1650 | 825 | 431.8 | 1″ | 500 | 1500 | 815 | — |
