Manufacturer: Daiichi Electronics Co., Ltd.

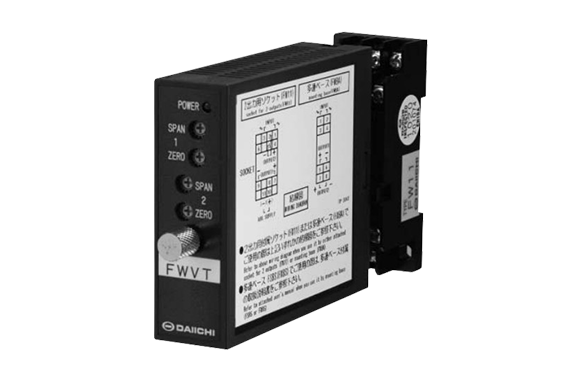

Model: FWVT

Features

• Dielectric strength between input/output, auxiliary power, and enclosure: AC 2,000 V (50/60 Hz), 1 minute insulation
• Dielectric strength between output channels: AC 500 V (50/60 Hz), 1 minute insulation
• Constant voltage/current output type, no adjustment required when used within the specified load resistance range
• Power-on status is confirmed via LED
• Independent zero and span adjustments for Output 1 and Output 2 (±2% adjustable)
• Compatible with distorted waveforms and SCR waveforms due to true RMS calculation method

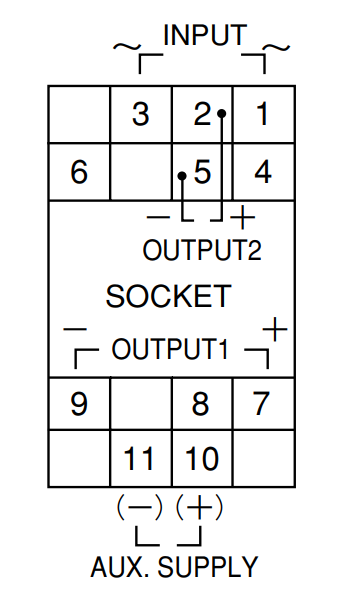

Wiring Diagram
