Manufacturer  : Daiichi Electronics Co., Ltd.

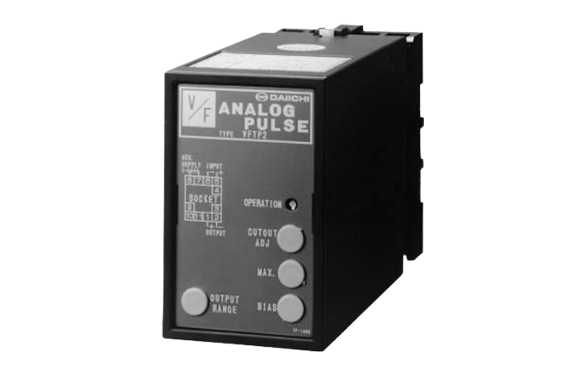

Model: VFTP2-915

Features

• One of the following output signal types is supported: open collector output, voltage output, or contact output.
  If the auxiliary power supply is AC, an external relay power supply (DC 24 V, max 40 mA) can also be provided with open collector output.
• Equipped with a function that cuts the output when the input drops to within the range of 1–10%.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between the entire circuit and enclosure).

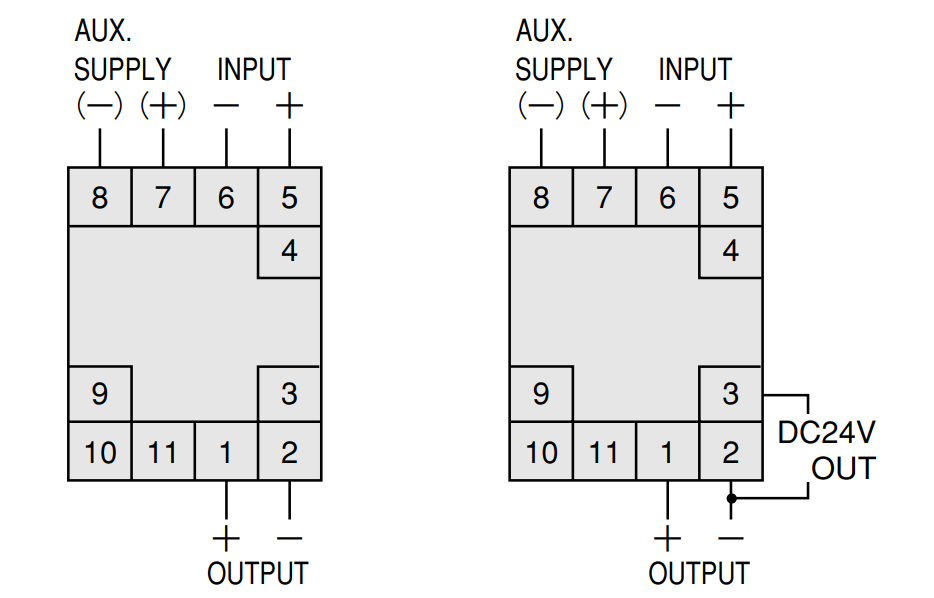

Wiring Diagram
