Daiichi Electronics

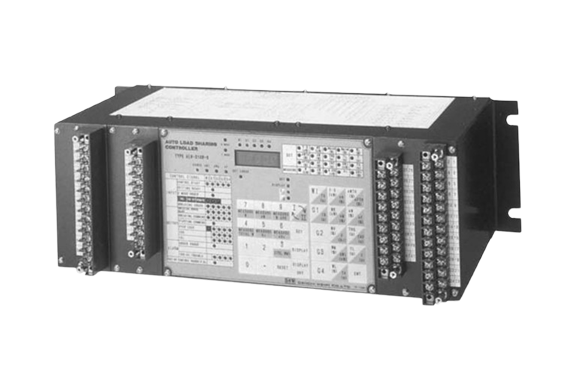

Daiichi Electronics Automatic Load Distribution Device ALS-210R

Manufacturer: Daiichi Electronics Co., Ltd.
Model: ALS-210R
Features
- Easy to set
Various control values can be easily set by key operation. - Plenty of displays:
Measurement value display (7 types of digital display)
Setting value display (digital display 20 settings)
Control status display (6 types of LED display)
Input status display Setting value display (LED display 7 settings)
Output status display Setting value display (LED display 6 settings)
Warning status display setting value display (LED display 2 setting)
Out of Control - By setting the average power measurement time limit, ideal average power and average frequency control is possible even if there are constant large load fluctuations.
- The constant power control value can be changed remotely. Also, remote monitoring is possible via analog output.
- The operation sequence can be freely specified externally.
- When a heavy load is cut off, measures against reverse power reception are possible. (With increased power reception load designation)
- By using non-volatile RAM, each setting value is saved even in the event of a power outage.

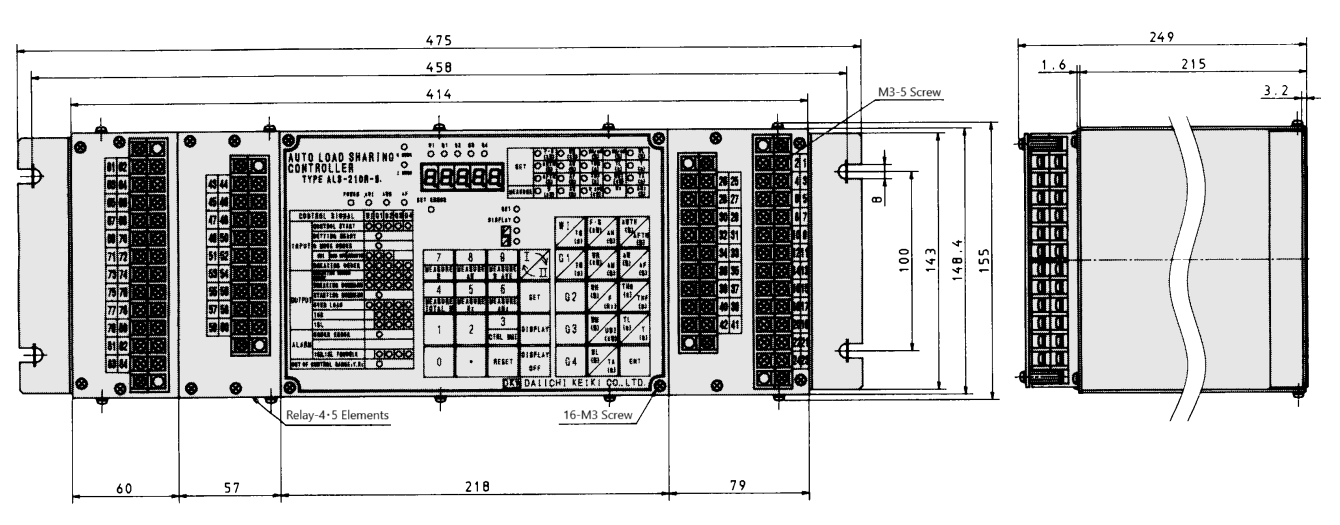

Outline Drawing
