Manufacturer: Daiichi Electronics Co., Ltd.

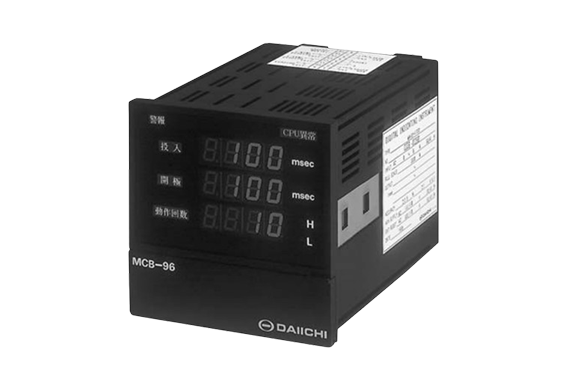

Model: MCB-96

Features

• The closing time, opening time and number of operations of the circuit breaker are measured and displayed.
• It has outputs for contact closing time and contact opening time. MCB-96 has analog output, and MCD-96 has communication output EIA RS-485 half-duplex two-wire start-stop synchronization system.
• The contact closing and opening times for up to the past 10 times (up to 9 times for MCD-96) can be displayed.
• Past data (including the current display value), number of operations, and alarm setting values ​​are guaranteed even in the event of a power outage.

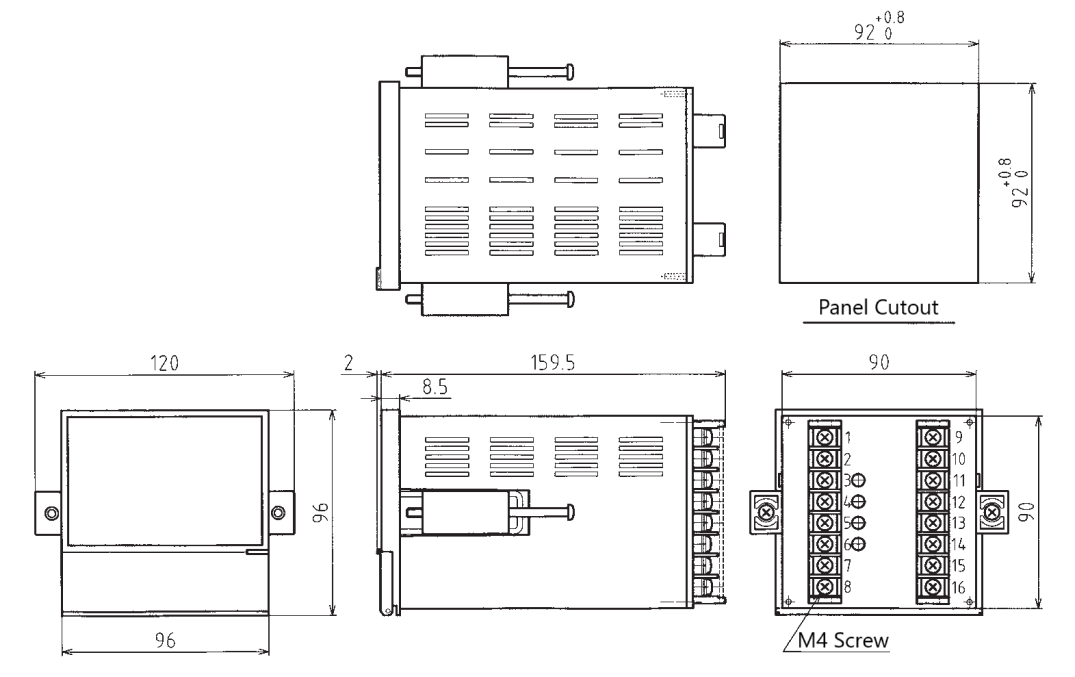

Outline Dimensional Drawing
