Manufacturer: Daiichi Electronics Co., Ltd.

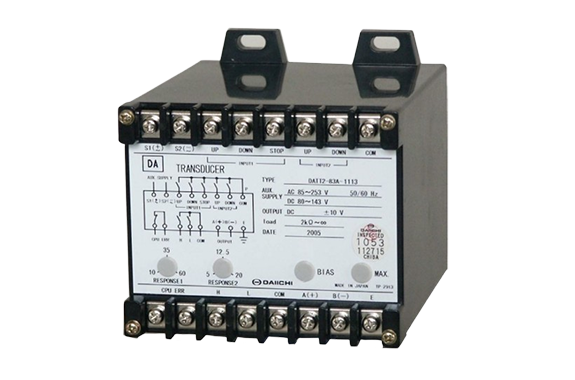

Model: DATT2-83A

Features

• Uses a microcomputer, providing excellent reliability and long life.
• As an option, it can detect abnormal operation of the CPU and send an output (contact) signal.
• If an internal abnormality occurs due to the self-diagnosis function, the output will return to the initial output value.
• The voltage change/time can be set using the front VR.
• The control power supply is AC85-253V, DC70-143V, and can be manufactured for both AC and DC, and DC16.8-56V, so it can be used for a wide range of power supplies.
• Between input, output, control power supply, and earth: Withstand voltage AC2000V 50/60Hz 1 minute insulation
• Compatible with DATT1-83A.

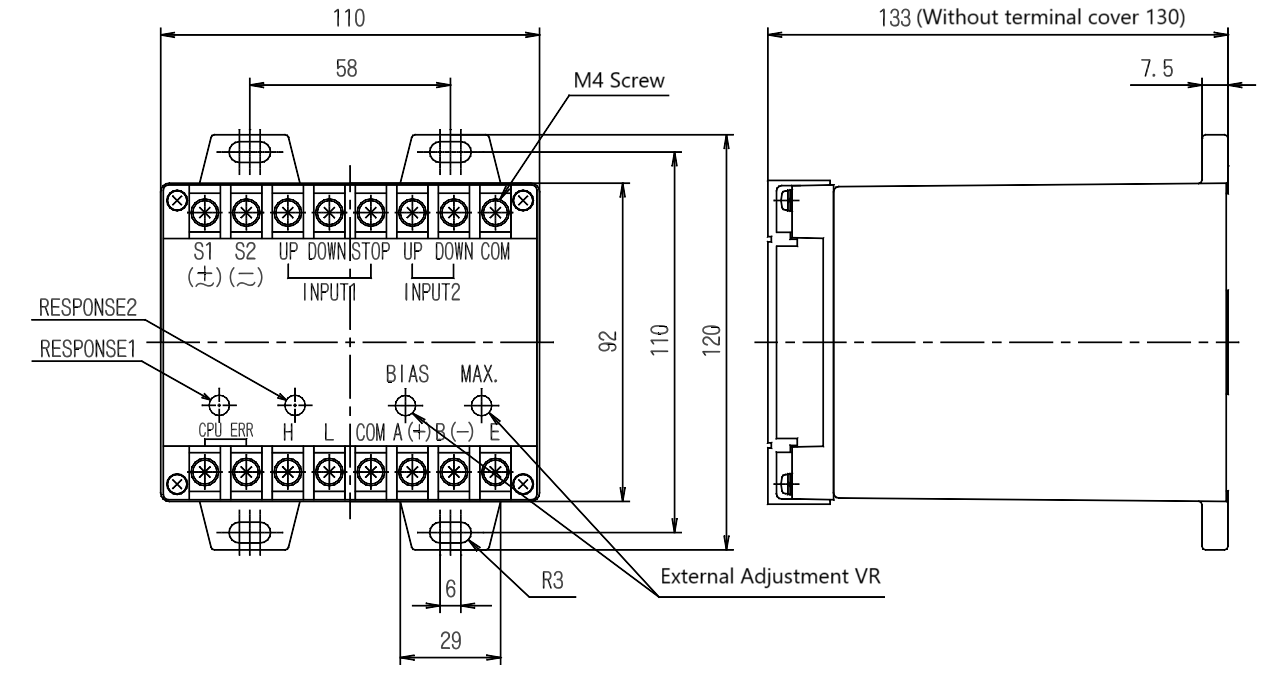

Outline drawing (Unit: mm)
