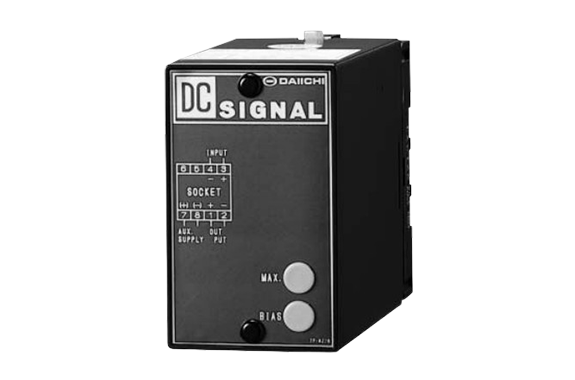

Manufacturer: Daiichi Electronics Co., Ltd.
Model: TP-C7F5

Features

• Provides constant voltage and constant current output.
• Withstand voltage: AC 2,000V (50/60Hz) for 1 minute between the entire electrical circuit and the enclosure.
  Additionally, AC 1,500V (50/60Hz) for 1 minute between input/output and auxiliary power.
  There is no insulation between input and output.
• Guarantees impulse withstand voltage of 5kV 1.2/50 μs, both polarities, 3 times (between electrical circuit and earth).

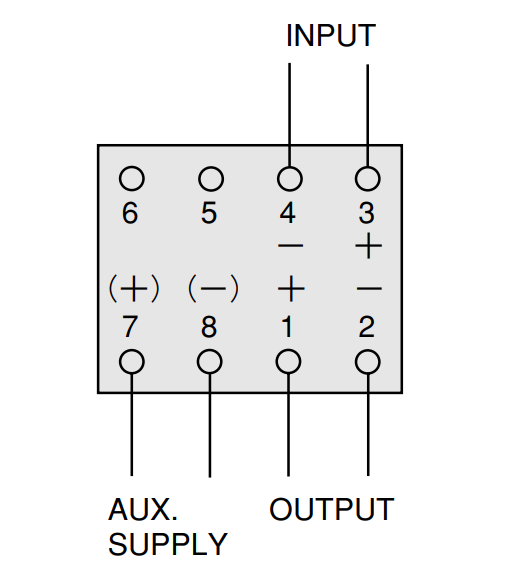

Wiring Diagram

Note: The polarity inside the parentheses applies when the auxiliary power supply is DC.
