Manufacturer: Daiichi Electronics Co., Ltd.

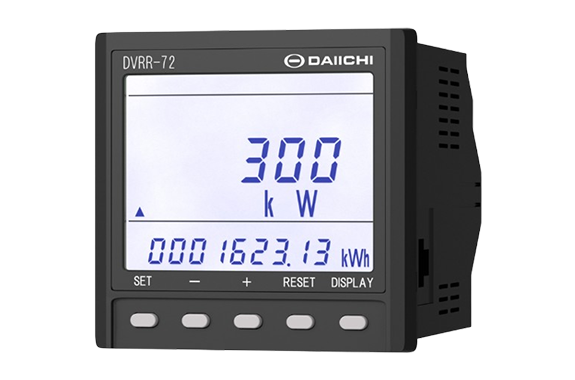

Model: DVRR-72

Features

• It is possible to control the power conditioner (PCS) according to the instantaneous fluctuation of power consumption.
• Integrates Reverse Power Relay (RPR), Earth Fault Overvoltage Relay (OVGR), multimeter function and backup power.
• The structure is designed to use high density internal circuit integration technology, screwless spring terminal blocks and split current sensors, and a compact body measuring DIN 72 x 72 mm, the smallest in the industry.
• Input from a split type power sensor allows easy installation even in limited spaces.
• Additional installation work can also be flexibly accommodated.(Current sensor is optional)
• Like various protective relays and multimeters, it can be used with unbalanced loads without any problems.

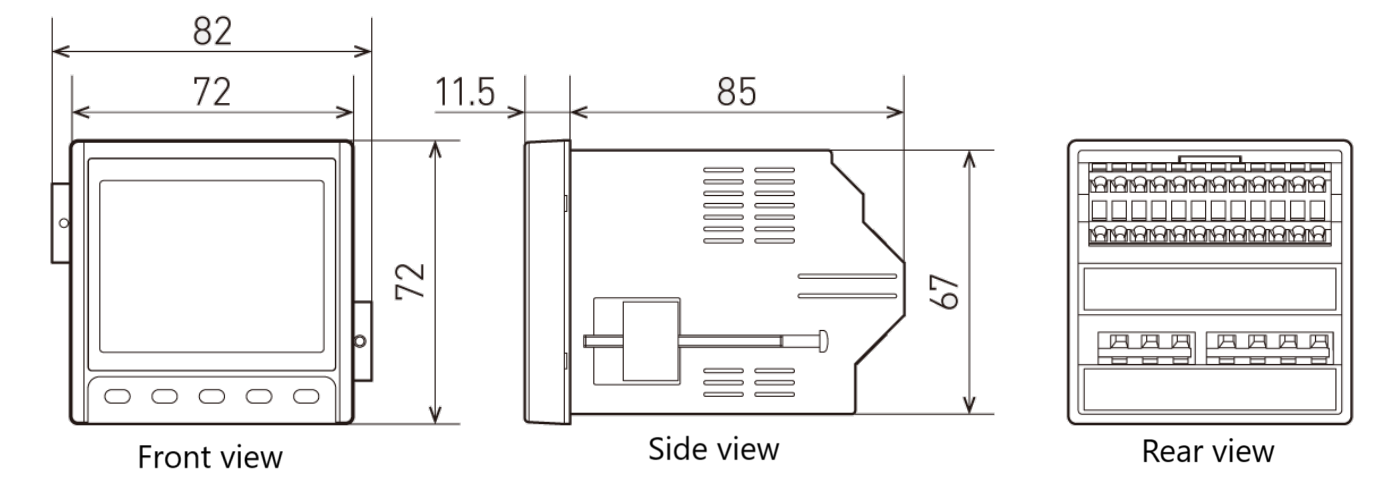

External dimensions
