Manufacturer: Daiichi Electronics Co., Ltd.

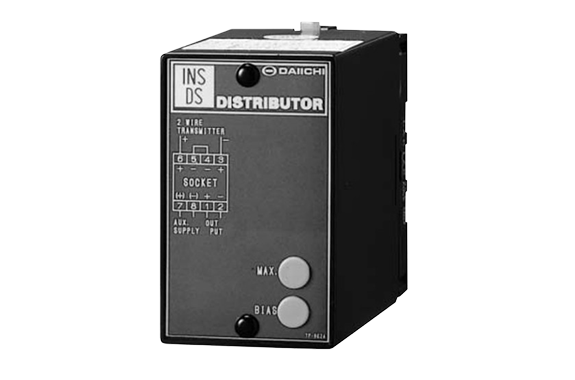

Model: DTP2-C1F1

Features

• This is a distributor for 2-wire transmitters, equipped with distributor and signal converter functions.
• Includes short-circuit protection for the transmitter circuit (30 mA or less). Supplies stable power to 2-wire transmitters.
• Impulse withstand voltage of 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between the electrical circuit and the enclosure).

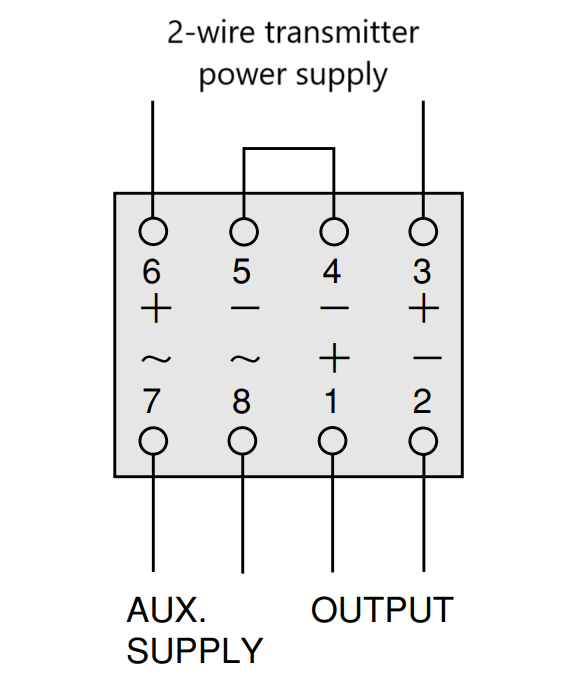

Wiring Diagram
