Manufacturer: Daiichi Electronics Co., Ltd.

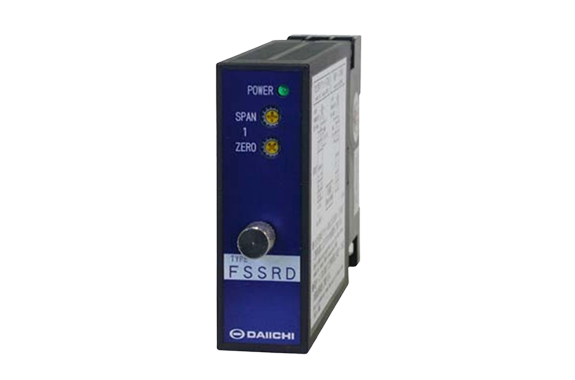

Model: FSSRD

Features

• Equipped with transmitter circuit short-circuit protection (limited current: 23–30 mA)
• Supplies stable power to 2-wire transmitters
• Allows monitoring of transmitter DC 4–20 mA signal as DC 1–5V (±0.1%) at terminals 4–5 of socket (FS08)
• Outputs below 10% are clamped to 0% by a cutoff circuit
• Power-on status can be checked with an LED (LED color: green)

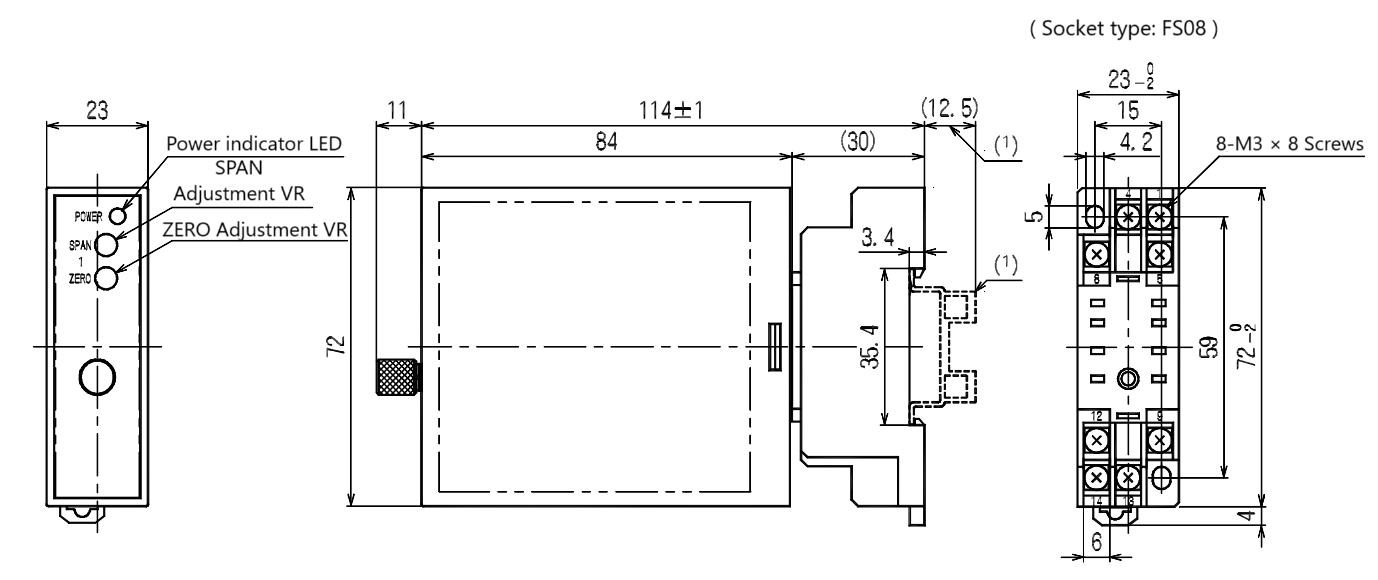

External Dimensions
