Manufacturer: Daiichi Electronics Co., Ltd.

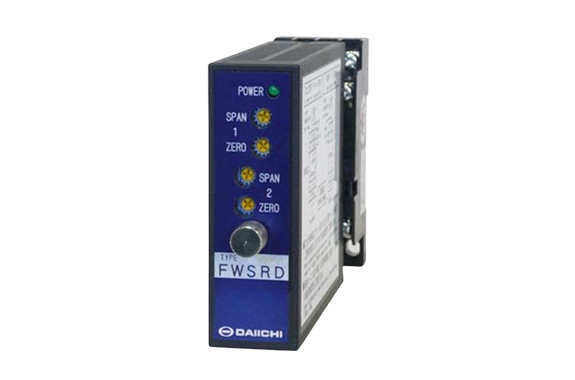

Model: FWSRD

Features

• Equipped with short-circuit protection for transmitter circuit (limited to 23–30 mA).
• Supplies stable power to 2-wire transmitters.
• Transmitter 4–20 mA signal can be monitored as a DC 1–5 V (±0.1%) signal via socket FW11 terminals 3–4.
• If output falls below 10%, it is clamped to 0% by the cut-off circuit.
• Power-on status is confirmed by green LED.

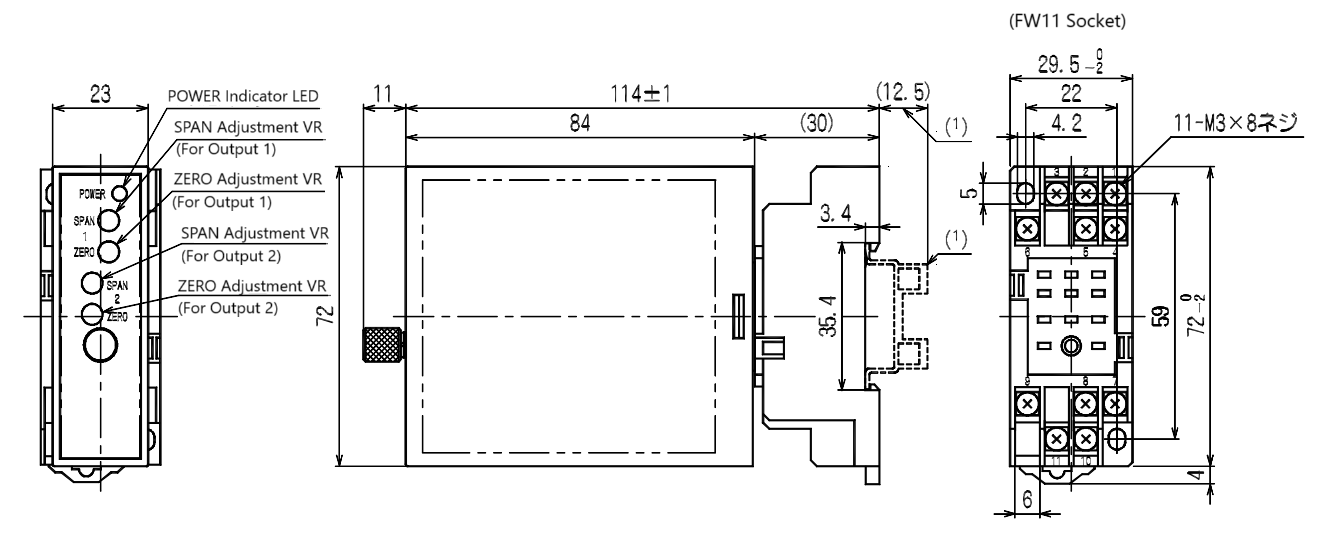

External Dimentions
