Manufacturer: Daiichi Electronics Co., Ltd.

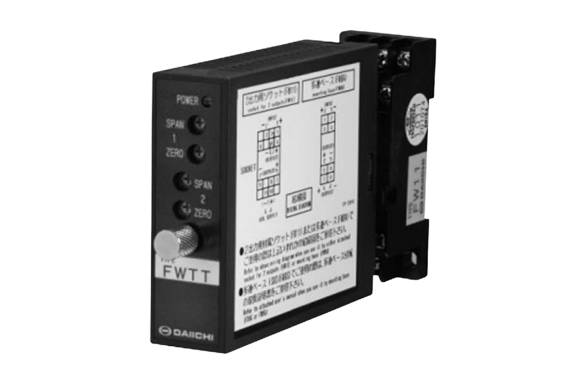

Model: FWTT

Features

• Designed with a compact size and high withstand voltage.
• Dielectric strength between input, output, auxiliary power supply, and case: AC 2,000 V (50/60 Hz), 1 minute insulation.
• Dielectric strength between output channels: AC 500 V (50/60 Hz), 1 minute insulation.
• As it is a constant voltage/constant current output type, no adjustment is needed when used within the load resistance range.
• Power supply application status can be confirmed with an LED.
• Zero and span adjustments for output 1 and output 2 can be adjusted independently. (±2% adjustment possible)

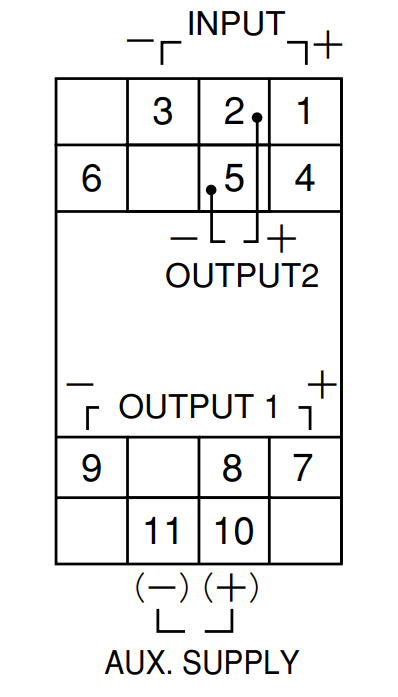

Wiring Diagram
