Manufacturer: Daiichi Electronics Co., Ltd.
Model: TRC-12A-K2

Features

• Provides constant voltage and constant current output.
• AC 2000V (50/60Hz) insulation for 1 minute between input, output, auxiliary power, and earth (enclosure).
  Insulation between output phases: AC 500V.
• Surge protection on both input and output lines (2,000A, 8/20 µs, both polarities).
• Output check terminals provided on the front panel.

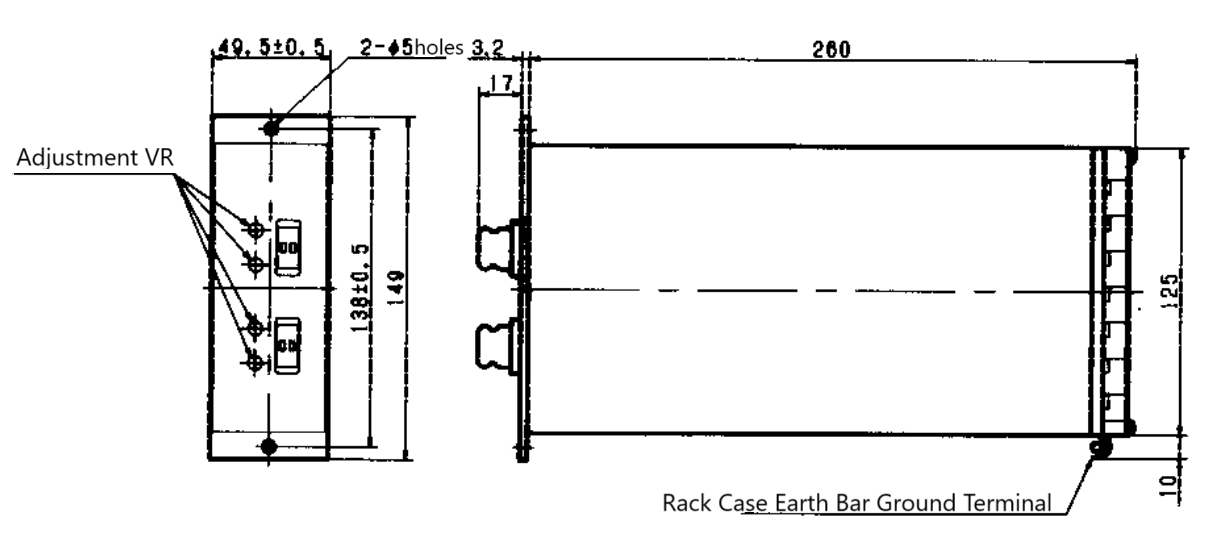

External Dimensions Drawing (Unit : mm)
