Manufacturer: Daiichi Electronics Co., Ltd.
Model: TP2-C7F5L

Features

• Provides constant voltage and constant current output.
• Complete insulation for 1 minute at AC 2,000V (50/60Hz) between input, output, auxiliary power, and earth (enclosure).
• Surge protection is provided between input and output lines (2,000A, 8/20 μs, both polarities).
• This unit is equipped with a lower-limit limiter function.
  It will not output less than -1% within the 0–100% output range.
  For limiter values below -1%, please consult us.

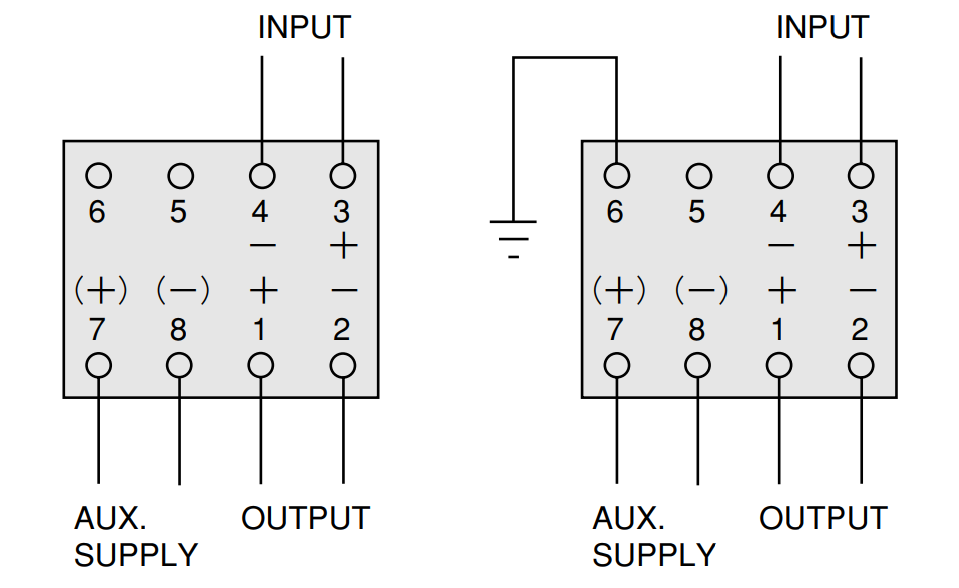

Wiring Diagram
