Manufacturer: Daiichi Electronics Co., Ltd.

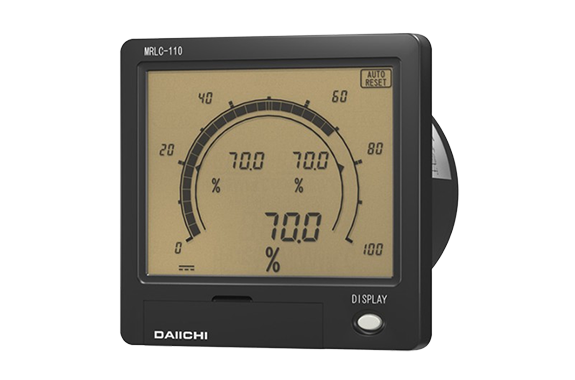

Model: MRLC-110

Features

• Alarm status and settings can be monitored via RS-485 communication.
• Supports up to 3 input circuits (voltage/current mix) with 2000V insulation.
• Standard: 6 alarm outputs (4 if communication is used).
• Displays operating, set, and measured values in actual scale and units.
• Set range: -25% to 125% of input; broken wire detection possible with 4–20 mA input.
• DC power can be calculated from inputs 1 and 2.
• Selectable operation: upper/lower limit, energized/de-energized/OFF.
• Includes start-up delay and contact delay functions.
• Displays 1 value on bar graph + 3 on digital screen simultaneously.
• Holds maximum and minimum values.
• Wide power supply support: AC85–253V, DC80–143V, or DC20–56V.

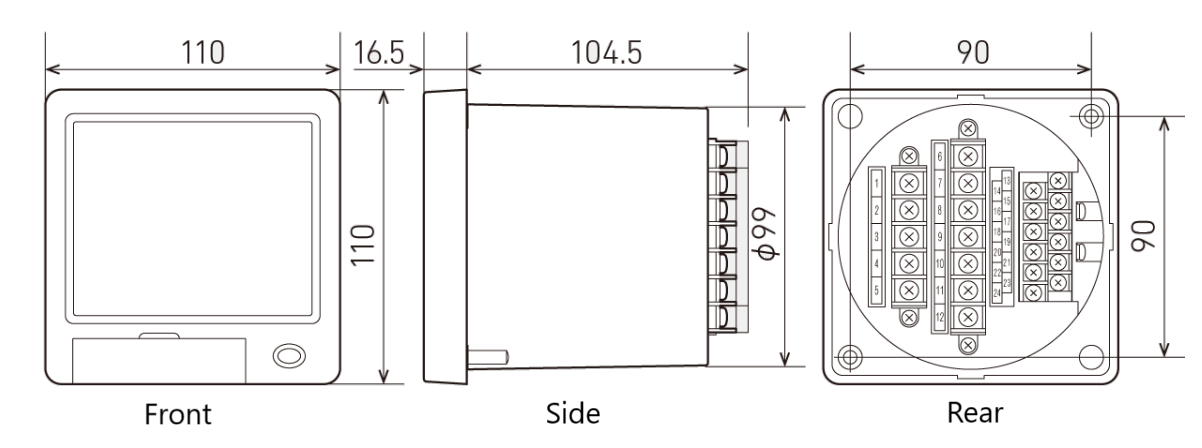

External dimensions

• Unit: mm
• Weight: 570g
