Manufacturer: Daiichi Electronics Co., Ltd.

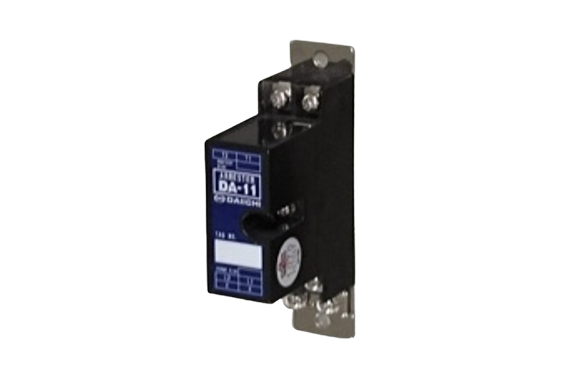

Model: DA Series (DA-11/DA-21)

Features

• It has a small plug-in structure and is designed so that the power line will not be open even if the main body is pulled out from the terminal block, making it easy to maintain.
• A fuse for protection against short circuit accidents between lines is built in. In particular, in the case of the DA-2□, when the fuse blows, the window in the arrester body turns white to notify you that the fuse has blown.

External Dimensions Drawing (Unit : mm)

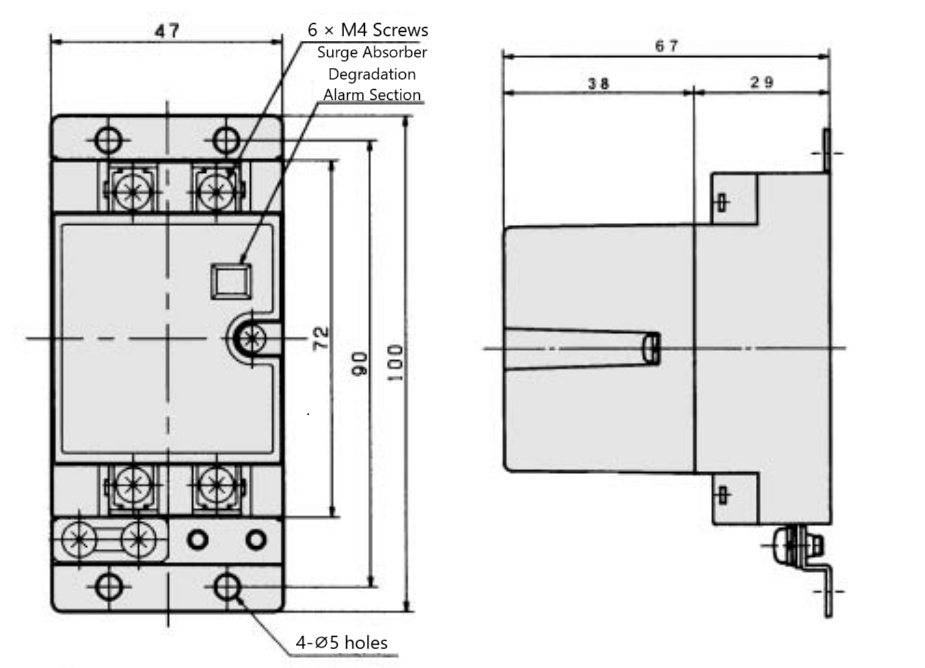

■DA-2

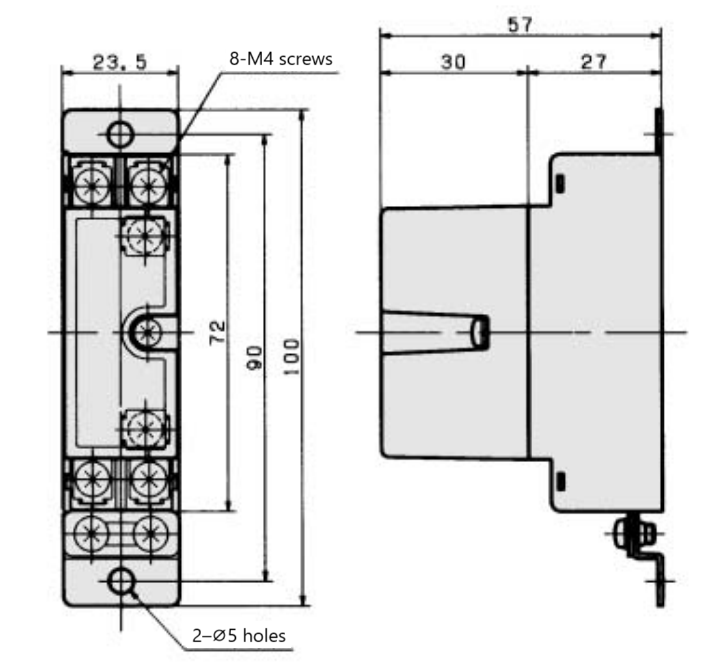

■DA-1
