Manufacturer: Daiichi Electronics Co., Ltd.

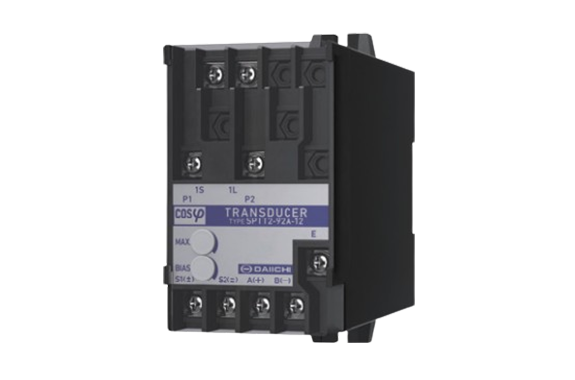

Model: SPTT2-92A-33

Features

• Complies with JIS C 1111:2019 and IEC 60688:2012.
• Compatible with both AC and DC (80–264V). Models supporting DC 24V/48V are also available.
• Achieves approximately 50% reduction in power consumption and weight compared to our previous products.
• Supports IEC/DIN rail mounting and wall mounting.

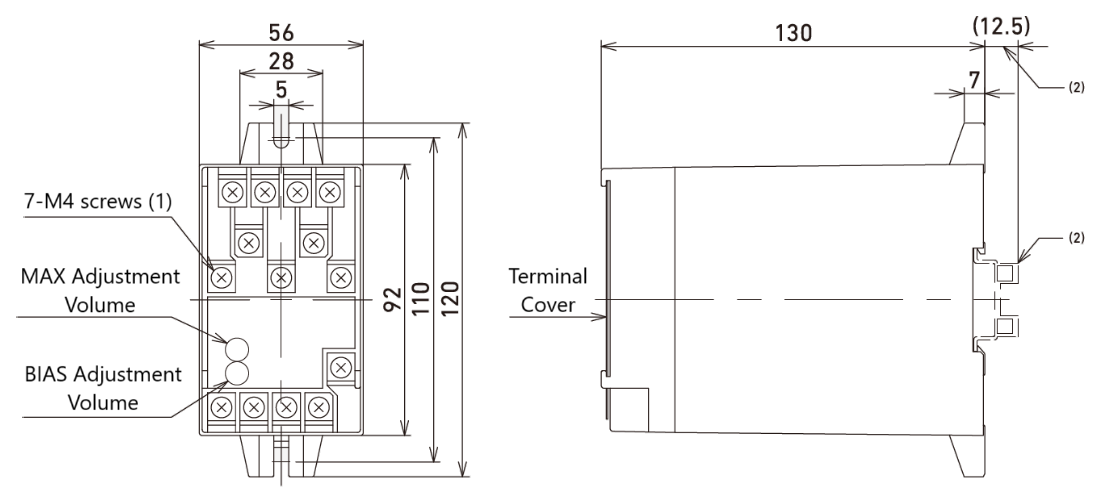

External dimensions (Unit : mm)

Note (1) The number of screws varies depending on the model.
Note (2) For installation on an IEC/DIN rail (height 15 mm). Use a rail with a width of 35 mm.
